Simple and economical Roovers metal tag embossing machines use rolls of metal “tape” to create deeply embossed or debossed tags for heavy-duty tagging applications. Using a character selection wheel, characters are embossed one at a time by pulling a handle. Create tags in variable lengths with holes or slots at both ends for nailing, tying, or welding in place for lasting product identification.

For faster and easier tag making, both the T-10A and T-20 can be supplied with a pneumatic kit and actuation lever for semi-automatic operation.

Characters on the DialABCDEFGHIJKLMNOPQRSTUVWXYZ#,./-123456789

Tape is supplied in convenient, pre-measured rolls in various materials and sizes for a variety of applications such as:

  • labels for pipe, hose, and cable
  • part tracking through painting and galvanizing operations
  • utility pole tags
  • in-mold identification of castings and tires

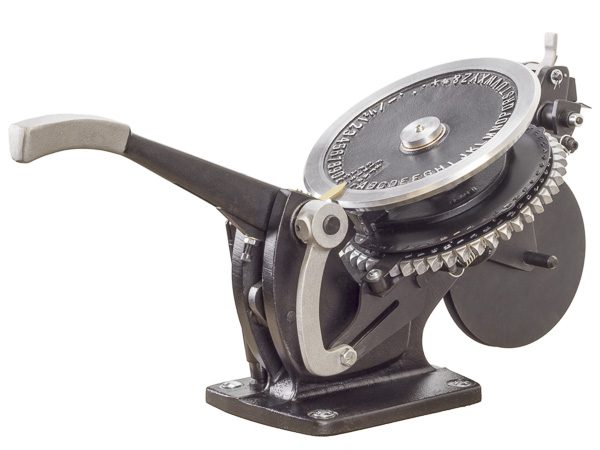

Roovers Model T-10A Metal Tag Embosser
Roovers Model T-10A Metal Tag Embosser

Roovers Model T-10A Metal Tag Embosser

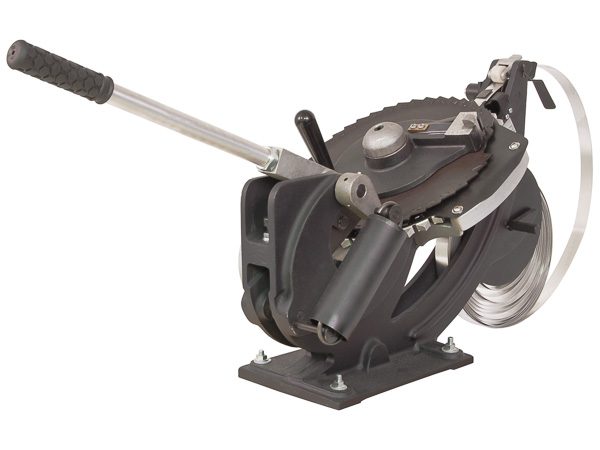

Roovers T-20 Manual Metal Tape Embosser

Roovers Model T-20 Metal Tag Embosser

Coil Metal Tag Embossing Tape

coil-feed metal tape

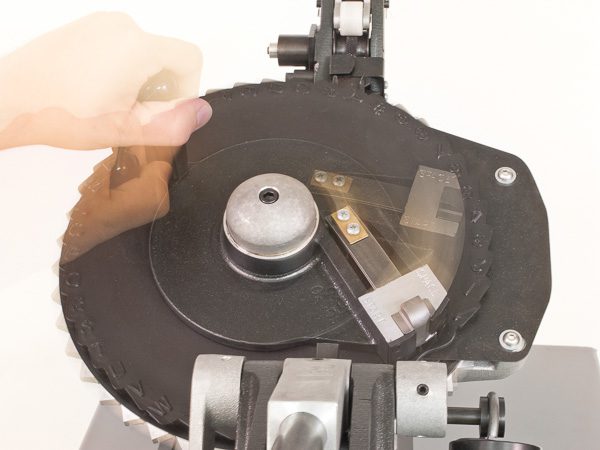

Roovers Tag Embosser Character Wheel

Model T-20 character selection wheel

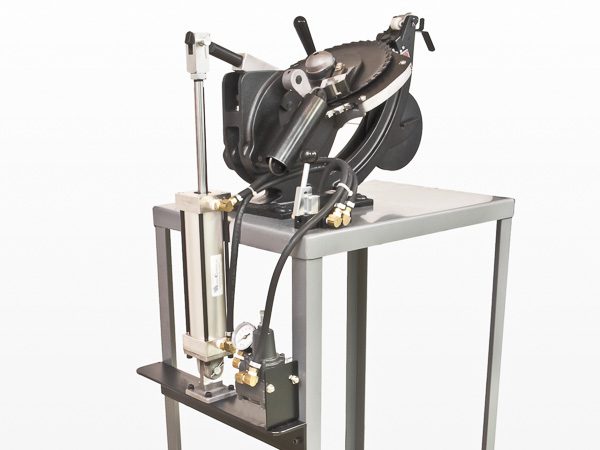

Roovers Pneumatic Tag Embosser

Roovers T-20 Pneumatic Tag Embosser

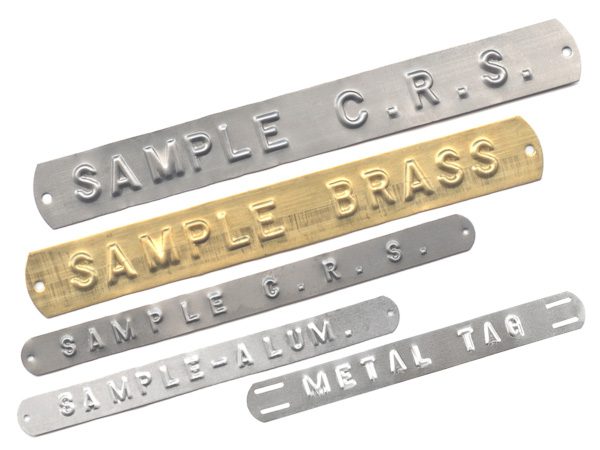

Embossed Tags In Aluminum, Brass, Steel, And Stainless

embossed metal tags with holes and slots

Manual Tag Slotting Tool For 1/2" / 12.7mm Wide Tags

tag slotting tool for 1/2" / 12.7mm wide tags

Roovers Model T-10A Metal Tag EmbosserRoovers T-20 Manual Metal Tape EmbosserCoil Metal Tag Embossing TapeRoovers Tag Embosser Character WheelRoovers Pneumatic Tag EmbosserEmbossed Tags In Aluminum, Brass, Steel, And StainlessManual Tag Slotting Tool For 1/2" / 12.7mm Wide Tags

All models are available as manual embossers for low volume tag making or pneumatic embossers for faster tag making. Both models can be used with either an embossing wheel for raised characters or a debossing wheel for deeply indented characters.

Model T-10A, Code 2405

Tape Width 1/2″ 12.7 mm
Character Size 1/4″ 6.35 mm
Maximum Tape Thickness .012″ .3 mm
Hole Punch Diameter 1/16″ 1.6 mm
Weight 27 lbs 12 kg



Model T-10A, Code 2406

Tape Width 11/16″ 17.5 mm
Character Size 1/4″ 6.35 mm
Maximum Tape Thickness .015″ .38 mm
Hole Punch Diameter straight cut-off
Weight 27 lbs 12 kg



Model T-20, Code 2417

Tape Width 7/8″ 22.2 mm
Character Size 3/8″ 9.5 mm
Maximum Tape Thickness .018″ .46 mm
Hole Punch Diameter 1/8″ 3.2 mm
Weight 57 lbs 26 kg

Metal tape is available in several thicknesses for both models in aluminum, brass, cold-rolled steel, stainless steel, and zinc. Please contact us for current pricing and availability.

Aluminum

Item# Width (in/mm) Thickness (in/mm) Roll Length (ft/m) Rolls per Carton
2636 5/16″ 7.9 .015″ .38 85′ 25.9 14
2638 3/8″ 9.5 .012″ .30 Special Order
2639 7/16″ 11.1 .012″ .30 Special Order
2642 1/2″ 12.7 .012″ .30 120′ 36.6 10
2643 1/2″ 12.7 .015″ .38 85′ 25.9 10
2647 11/16″ 17.5 .015″ .38 85′ 25.9 8
2650 3/4″ 19.1 .018″ .46 80′ 24.4 7
2653 7/8″ 22.2 .018″ .46 80′ 24.4 6
2658 1 1/4″ 31.8 .022″ .56 Special Order
2661 1 1/2″ 38.1 .022″ .56 65′ 19.8 4



Brass

Item# Width (in/mm) Thickness (in/mm) Roll Length (ft/m) Rolls per Carton
2811 1/2″ 12.7 .015″ .38 80′ 24.4 10
2818 7/8″ 22.2 .020″ .51 75′ 22.9 6



Cold Rolled Steel

Item# Width (in/mm) Thickness (in/mm) Roll Length (ft/m) Rolls per Carton
2843 1/2″ 12.7 .015″ .38 85′ 25.9 10
2846 7/8″ 22.2 .015″ .38 85′ 25.9 6



Stainless Steel

Item# Width (in/mm) Thickness (in/mm) Roll Length (ft/m) Rolls per Carton
2883 1/2″ 12.7 .010″ .25 85′ 25.9 10
2888 7/8″ 22.2 .010″ .25 85′ 25.9 6



Zinc

Item# Width (in/mm) Thickness (in/mm) Roll Length (ft/m) Rolls per Carton
2766 1/2″ 12.7 .015″ .38 85′ 25.9 10
2771 3/4″ 19.1 .018″ .46 80′ 24.4 7
2775 7/8″ 22.2 .018″ .46 80′ 24.4 6
2776 1 1/8″ 28.6 .022″ .56 Special Order
2781 1 1/2″ 38.1 .022″ .56 Special Order
manual tag slotting tool for 1/2" / 12.7mm wide tags
slotting device for metal tags

The optional slotter punches two slots in tags (1/2″ and 11/16″ wide material only) for easy attachment to pipe, hose, and cable. Slotted tags made with the Roovers embossing machine comply with B.O.E. Navy Department specifications.

EmbossMax 3000 Metal Tag Embossing Machine

Programmable Tag Embosser

Easily emboss batches of tags from a spreadsheet or enter data on the touchscreen controller.

Metal Tag Stamping Machine

Single Tag Embosser

Emboss or stamp single tags of any thickness with this benchtop tag marking system. Easy touchscreen controller.

AES Embossed Metal Tags

Embossed Metal Tags

Order pre-embossed or blank tags for use in tag embossing machines.
