The PLUS3 Metal Tag Printer uses a powerful air-cooled 30W CO2 laser to print data on coated metal tags without the use of inks. This industrial printing system integrates into any production environment for fast and automatic tag printing.

The PLUS3 marks text, bar codes, 2D codes, and graphics on Pannier laser printable metal tags. A coil of tags is loaded into the printer for printing one at a time or in batches. The rigid tags are nicked and notched for easy break-off, and the corners are rounded for safe handling.

Built for High Volume Production

The PLUS3 is flexible enough to accept data from a host system, data file, bar code scanner, or operator input. When used as a network printer, tags are printed immediately to keep up with your production needs. The onboard Pannier7 software makes it easy to monitor printer status and view jobs in the print queue. Pannier works with you to customize the software to suit your exact requirements. This turnkey tag printing system ensures seamless, error-free operation from day one.

  • Ultra-fast, high quality printing
  • Direct laser marking method does not require any inks, toners, or ribbons
  • Specially coated metal tags survive high temperatures, acids and fluids, and weather exposure

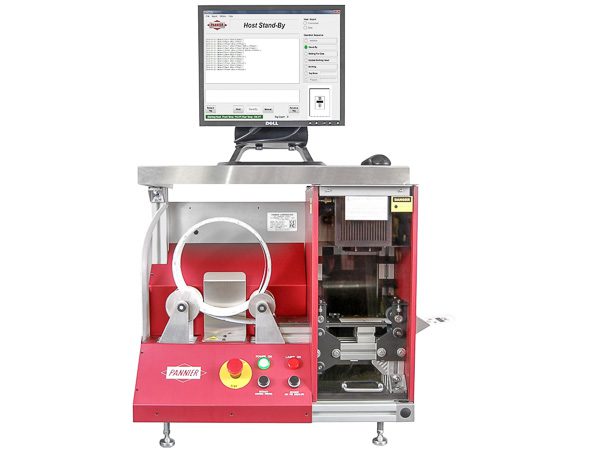

PLUS3 lsaer metal tag printer
PLUS3 lsaer metal tag printer

PLUS3 Metal Tag Printer

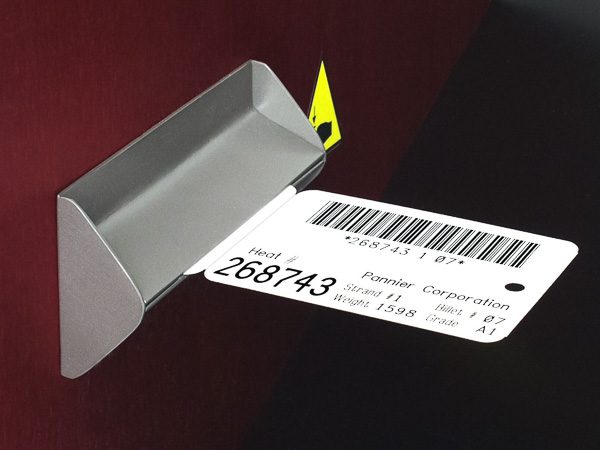

PLUS3 tag break off

PLUS3 tag break off

MCL1800 2D code tag on hot steel billet

MCL1800 2D code tag on hot steel billet

bar code tracking for hot dip galvanizing

bar code tracking for hot dip galvanizing

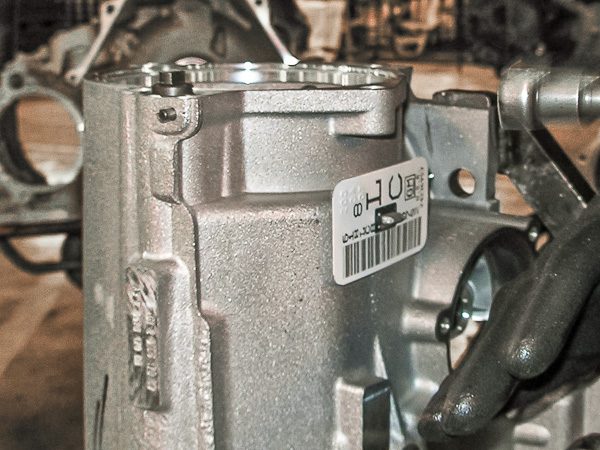

auto transmission tracking tags

auto transmission tracking tags

PLUS3 lsaer metal tag printerPLUS3 tag break offMCL1800 2D code tag on hot steel billetbar code tracking for hot dip galvanizingauto transmission tracking tags
Video
Specifications
Dimensions (W x D x H) 27″ x 27″ x 20.6″  |  69 x 69 x 52 cm
Communication Ethernet TCP/IP, Serial RS-232
Data Input Methods Host data streams, data file import, network folder monitoring, ODBC database, connected device such as bar code scanner or scale, manual operator input
Remote Access TeamViewer pre-installed for secure remote access and diagnostics
Bar Code and 2D Codes Standard codes including UPC, EAN, Code 39, Code 128,  ITF (2 of 5), Code 93, PDF417, Data Matrix, and QR
Graphics Vector and raster images
Fonts Stroke & TrueType
Safety Certifications The printer is CE certified and FCC certified, and the Class I laser operates in an enclosed area for operator safety.
