The REA JET pigmented ink jet printer is designed to operate in harsh industrial environments and print with exceptional legibility on metals, rubber, plastics, textiles, and other materials. The printer’s patented print head and specialized ink circulation system deliver high-contrast, pigmented marking inks. The large, bright white or colored printing replicate marks traditionally made with stencils and paint.

These large character ink jet printing systems are easy to use, robust, and due to the modular construction of the system components, highly flexible. The print resolution meets the requirements of virtually all industrial applications for marking and coding.

Rugged Design Means Minimal Downtime

  • IP65-rated components can operate in dusty, humid, and hot environments.
  • Ink circulation system keeps pigmented inks properly mixed to prevent print head clogs.
  • The 4.5 liter ink supply tank is easy to fill and features a quick-change liner and optional low ink indication lamp.
  • All printer components can be removed and replaced via quick disconnect ports, ensuring that the printer is operational in the shortest period of time when maintenance is needed.

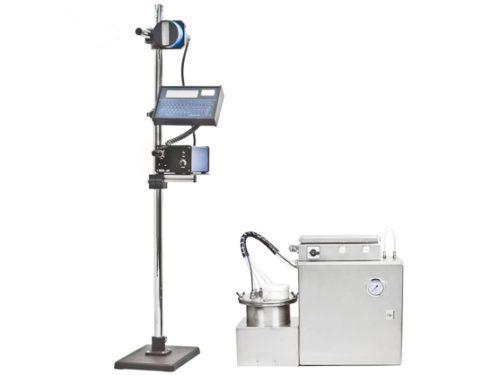

05p REA JET Pigmented System

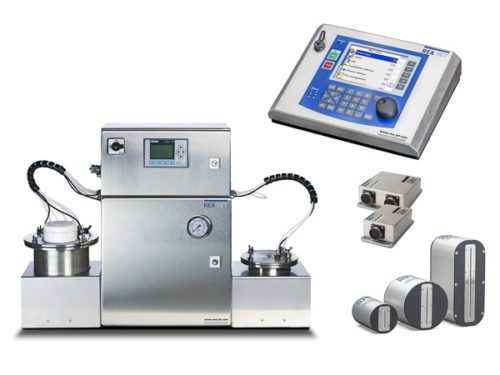

REA JET Pigmented Ink Jet Printer

REA JET pigmented ink jet printer

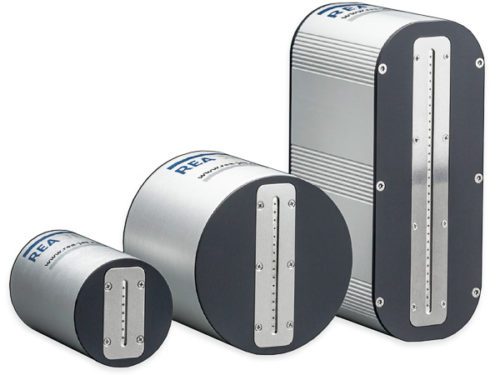

REA-JET Printheads

REA-JET printheads

16 Dot Printhead

16-dot printhead connections

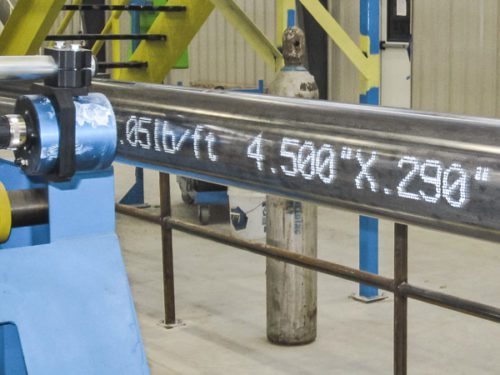

White Stenciling On Steel Pipe

white stenciling on steel pipe

05p REA JET Pigmented SystemREA JET Printheads16 Dot Printhead Connections05m Ink Stencil Steel Pipe
7-dot print head
16-dot print head

Printheads

  • Heavy-duty, stainless steel components
  • Five nozzle size options for optimal ink usage
  • IP65 protection from dust and water

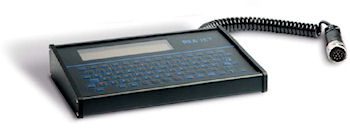

REA JET 7-16 dot terminal

ST200 Input Terminal

  • Text and logos can be edited directly or sent via serial connection
  • After programming, the input terminal can be disconnected to prevent unwanted changes; one terminal can be used to program multiple systems
  • IP65 rated protection from dust and fluids
REA JET Controller

Controller

  • Dot size adjustment dial to control ink usage and achieve optimum print quality
  • Connect up to four printheads
  • IP65 – dust-proof and resistant to splash water

7-dot-print-sample

7-dot printhead, 7×5 font

16-dot-print-sample

16-dot printhead, 16×10 bold font

16-dot-print-sample2

16-dot printhead, 16×10 font, logo with two lines of text

High Contrast Stenciling Steel Pipe
White Printing On Poly Hose
Ink Jet Marking On Fabric
Yellow Printing On Foam Pipe Insulation
White Printing On Structural Steel
Carpet Backing Ink Jet Printing

A unique feature of the REA JET’s design is its ability to use many different types of inks, including some that cannot be used in any other kind of ink jet printer.

Pigmented Inks

A variety of solvent-based and water-based pigmented inks are available for high-contrast printing on industrial products like metals and rubber. Typical colors are white, yellow, green, orange, and red – available colors vary by formulation.

Specialty Inks

  • Co-curable rubber-based inks (see the Rubber Printing System for more information)
  • Water-removable
  • Disappearing



See the list of available Ink Jet Inks & Solvents.

SG Dye Based Ink Jet Printer

SG Dye Based Ink Jet Printer

Flexible DOD ink jet printer interfaces with industrial controls or host. Protected system for heavy-duty applications.

In-line Code Printers

In-line Code Printers

Code printers designed for carton coding, piece marking, or printing on continuous web material.

Flexographic Printers

Flexographic Printers

Standard and custom-designed printers for marking single or multiple lines of text and logos on flat, moving materials.
