Automator rotary dot peen marking systems are made for programmable marking around the circumference or along the axis of round parts by rotating the part in sync with the marking pin. Data entry can be manual or automated for error-free marking with the AC500 touchscreen controller. Automatic date coding, serial numbering, 2D coding are standard features.

  • Easy setup and data entry – no PC required
  • Each system is built to suit your part and delivered ready to mark
  • Configurations available for light or deep marking on metals – call us with your application details

Fixtures

Several types of rotary part holding fixtures are available. Each fixture uses a three-jaw, self-centering, adjustable chuck to hold parts of various sizes during marking.

part holding chuck
part holding chuck

Pneumatic fixtures, cradle rolls for support of heavy items, and custom fixturing and bases are also available. Let Pannier design a system just right for your application.

automatic stamp marking system for round parts
automatic stamp marking system for round parts

automated marking system for round parts

rotary dot peen marking fixture

rotary dot peen marking fixture

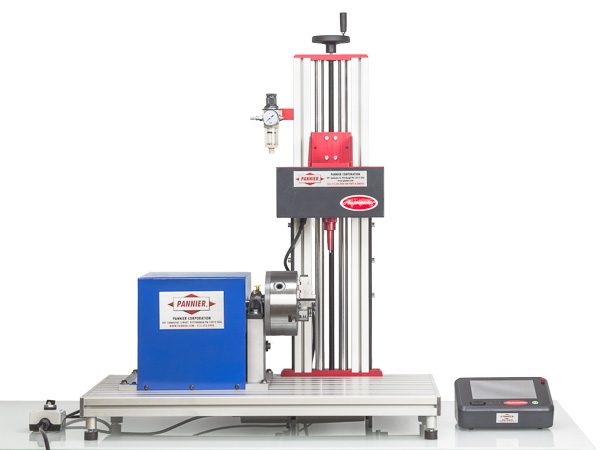

heavy duty rotary marking system for round parts

rotary marking system for heavy round parts

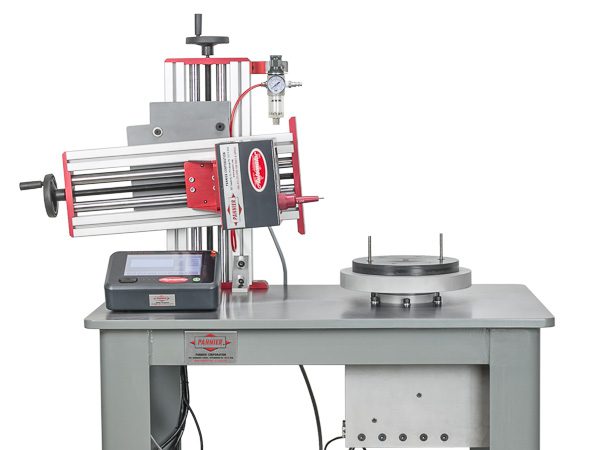

rotary dot peen table for marking flanges and turbine blades

rotary table for marking heavy flanges, turbine parts, etc

round part marking

mark parts with angles and curves

automatic stamp marking system for round partsrotary dot peen marking fixtureheavy duty rotary marking system for round partsrotary dot peen table for marking flanges and turbine bladesround part marking
Video
Programming

Programming marking jobs is fast and easy with the AC500 controller:

  • Mark preview screen allows the user to easily view and edit fields in the marking job
  • Check Area and Dry Run functions let you see how the job will run before making a mark
  • Upload and mark logos and graphics using BMP and DXF files
  • Data to be marked can be manually typed, retrieved from a file, or scanned from job paperwork using a bar code scanner

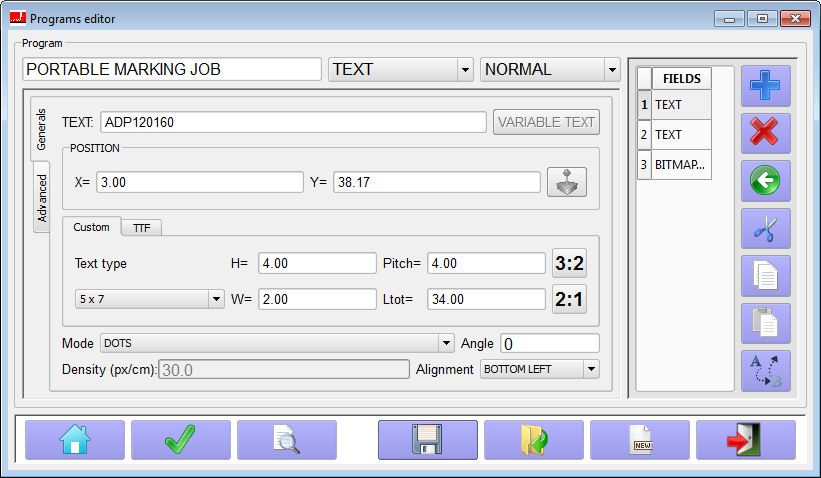

AC500 marking program screen
