Supreme-Safe Type Holders are designed with safety in mind.  These heavy-duty industrial type holders are used for marking hot or cold metals with heat numbers or part numbers. Each holder is custom-made to handle your particular marking requirements.

  • Large, heavy duty stamping tool for marking cast metals and forgings
  • Stamp one or two lines of 3/16″ to 1/2″ high characters
  • Available with replaceable head and anvil for long life

Holder Styles

Hammer Style — Type holder held with a handle and struck with a hammer to make a mark.

Axe Style — Type holder swung like an axe (no hammer needed) to make a mark.

Hand-held Style  — Type holder struck with a hammer to make a mark.

Shank Style — For use in a heavy press, these type holders feature an integrated shank or a drilled and tapped hole for a separate shank.

03p Supreme Heavy Duty Type Holder Roto Pin

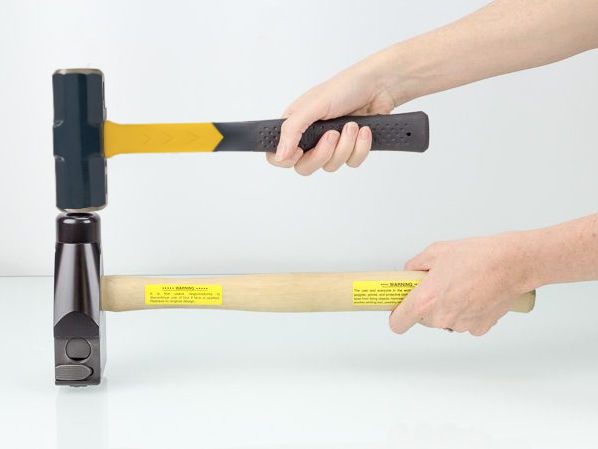

Supreme Safe™ Style S Type Holder With Roto Pin And Replaceable Head

Supreme Safe™ hammer style type holder with roto pin and replaceable head

Supreme Safe™ Style S Heavy Duty Type Holder

Supreme Safe™ hammer style heavy duty type holder

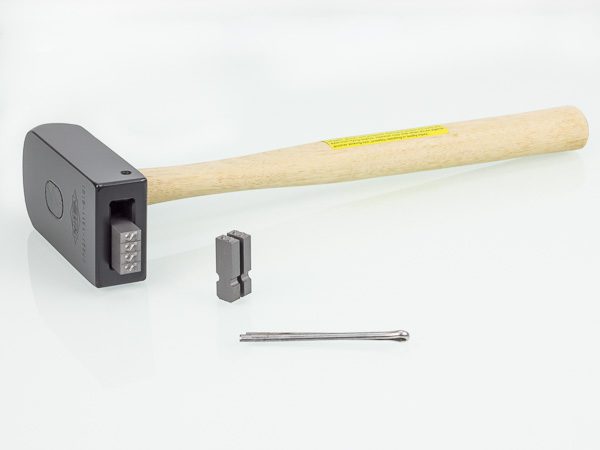

Supreme Safe™ Style S Type Holder With Cotter Pin

Supreme Safe™ axe style type holder with cotter pin

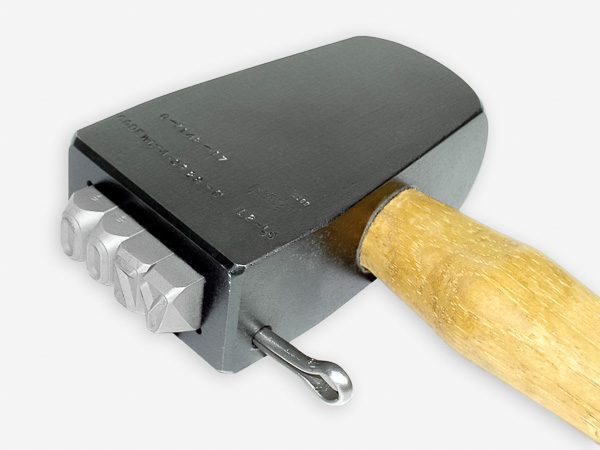

Supreme Safe™ Style L Type Holder With Cotter Pin

Supreme Safe™ axe style type holder with cotter pin

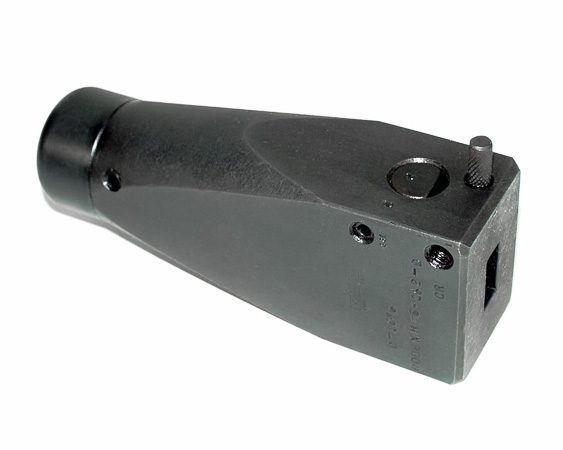

Supreme Safe™ Hand-held Type Holder With Draw Pin And Replaceable Head

Supreme Safe™ hand-held type holder with draw pin and replaceable head

03p Supreme Heavy Duty Type Holder Roto Pin03p Supreme Heavy Duty Type Holder03p Style S Type Holder Draw PinSupreme Safe Type Holder Style L03p Hand Held Heavy Duty Type Holder

Typical character sizes are 1/4″, 3/8″, 5/16″, 5/8″, and 1/2″. Other sizes available.

Holders can be made to accommodate one or multiple lines of type.

Holders are made as a solid piece or with replaceable striking heads and anvils to extend the life of the holder. If these holder parts wear after extensive use, they can be replaced.

Hammer Style and Axe Style holders are available with the type holder oriented parallel to the handle (Style L) or perpendicular to the handle (Style S).

Wooden handles are available in 14″, 18″, 30″ and 36″ lengths.

Type Retaining Methods

There are three options for holding type in these holders:  a cotter pin, a draw pin, or Pannier’s special Roto-Pin.  Cotter and draw pins are simple and economical methods of holding type.  For easy and quick type changes, the Roto-Pin features a quick lever release to lock in type.

Steel Type For Holders

Steel Type for Holders

Made with or without slots for use in type holders. Makes marking multiple characters fast and easy.

Hand-held Medium-duty Holders

Hand-held Medium-duty Holders

Medium to heavy duty type holder for marking one line of characters into various industrial products.
