CO2 lasers offer consistent, high-quality marking on many types of materials on the production line, including plastics, ceramics, rubber, paper and fiber products. REA JET CL CO2 laser marking systems are designed for easy integration into production lines and automation cells with their sturdy cabinets, rotating marking heads, and internet-ready controls.

Easy Production Integration

  • A compact size and rotating marking head allow the laser to be mounted in any orientation.
  • Beam turning and extending accessories extend the laser beam into areas that would otherwise be difficult to access.
  • New-generation digital beam directing mirrors allow for excellent quality marking at high production speeds.
  • A pilot laser allows for easy visual setup of new marking jobs.

Modern Controls

Working with CL laser marking systems is simple and intuitive. The controller features a color graphical operating panel and rotary pushbutton knob for easy menu navigation and job selection. Remote operation and diagnostics can be accomplished remotely using the integrated VNC server accessible from any web browser.

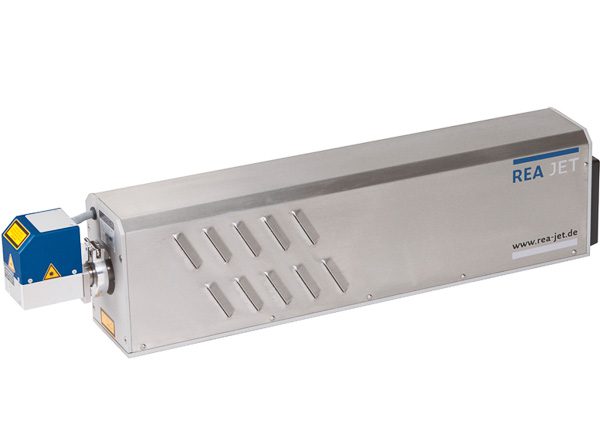

REA JET CL CO2 laser marking head
REA JET CL CO2 laser marking head

REA JET CL CO2 laser marking head

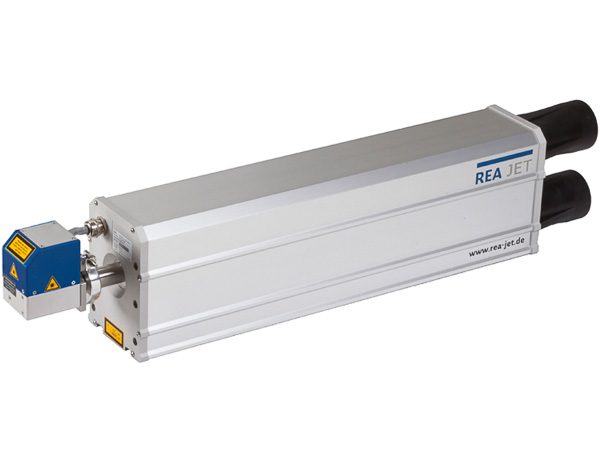

IP65 rated CL laser

IP65 rated CL laser

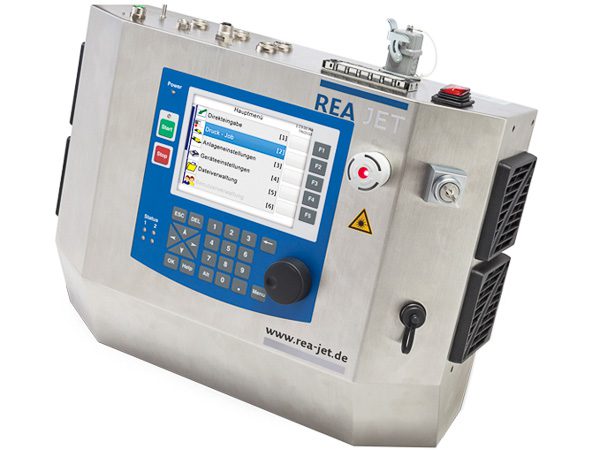

REA JET TITAN CO2 Laser Controller

REA JET TITAN CO2 Laser Controller

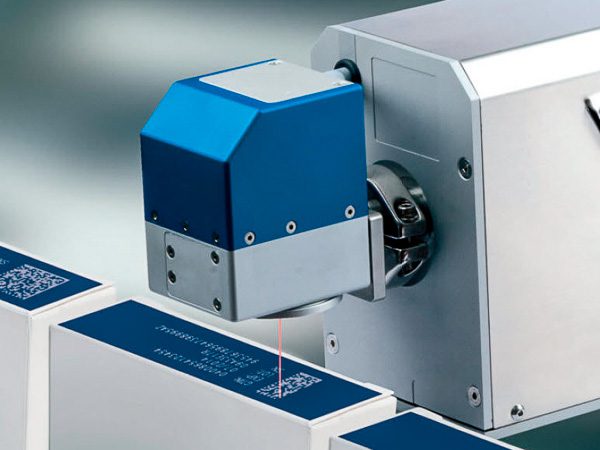

automatically mark products on the production line

automatically mark products on the production line

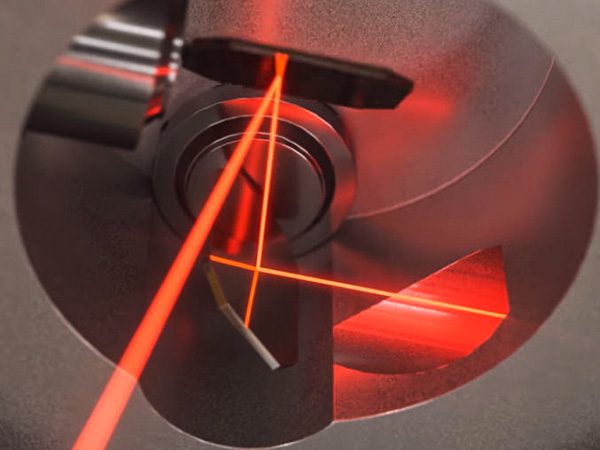

fast, precise digital beam deflection

fast, precise digital beam deflection

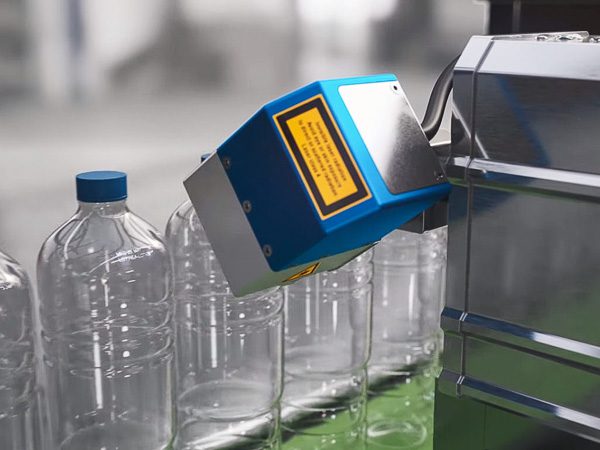

mount in any direction

mount in any direction

REA JET CL CO2 laser marking headIP65 rated CL laserREA JET TITAN CO2 Laser Controllerautomatically mark products on the production linefast, precise digital beam deflectionmount in any direction
Specifications
Laser Type Air-cooled CO2 laser with integrated pilot laser
Power Supply 95-250 VAC (autorange) 50/60 Hz
Emergent Beam Angle Continuously adjustable
Communication Ethernet, RS-232/422, USB
Digital I/Os 2x 6 inputs, 2x 4 outputs, freely configurable
Safety Dual-channel safety circuit interlock
Max. Line Speed 1,000 meters/minute | 3,280 feet/minute
Umbilical Cables Detachable; available in four lengths up to 10 meters / 33 feet long
Controller Dimensions
L x W x H
329 x 424 x 142 mm  |  13″ x 16.7″ x 5.6″
Display 5.7″ hi-res graphics display, 6 LEDs for direct display
Languages Multi-language support, freely selectable
Fonts Laser-optimized fonts, TrueType fonts, custom fonts
Message Content
  • Single-line text, multi-line text with word wrapping
  • Dynamic text including date, shift, time, and serial codes
  • Bar codes and 2D codes including input wizard for GS1 and other standards
  • Logos and graphical shapes
Options
Laser Unit CL210 CL230 CL260
Maximum Power 10 Watt 30 Watt 60 Watt
Wavelength (microns) 10.6μm
(9.3μm at 8 W)
10.6μm
(10.2μm at 25 W)
(9.3μm at 20 W)
10.6μm
Dimensions
L x W x H
787 x 137 x 180 mm
31″ x 5.4″ x 7.1″
787 x 137 x 180 mm
31″ x 5.4″ x 7.1″
898 x 137 x 180 mm
35.4″ x 5.4″ x 7.1″
Weight 14kg | 31 lbs 18kg | 40 lbs 25kg | 55 lbs
IP65 Version
Dimensions
L x W x H

817 x 142 x 192 mm
32.2″ x 5.6″ x 7.6″

IP65 Version Weight 15 kg | 33 lbs 19 kg | 42 lbs 26 kg | 57 lbs



Lenses

Lens 100 150 200 250 300
Distance from Lens
to Product Surface
100 mm
3.9″
150 mm
5.9″
200 mm
7.8″
250 mm
9.8″
300 mm
11.8″
Marking Area
L* and H (mm/inches2)
80 mm
3.1″
120 mm
4.7″
160 mm
6.3″
205 mm
8.1″
250 mm
9.8″

* Unlimited message length when marking moving products.

Accessories

Let us help you build the perfect system for your production needs with these accessories and more.

  • Beam Deflection and Lengthener Kits
  • Product Sensors
  • Production Speed Encoders
  • Fume Extraction & Filtration Units
  • I/O Kits for DIN Rail Mounting
  • Safety Kits
  • Signal Lights
  • Fan Covers for Dust & Splash Protection
  • External Cooling Units for IP65 Systems
  • Fineline Option for Increased Resolution
