The VIS is a compact, all-in-one Class 4 laser for marking metals, plastics, ceramics, and other surfaces. Ideal for integration into production lines, all the system’s components – the laser source, scan head, lens, hardware and software boards – are housed in a single, compact unit.

Mark text, date codes, shift codes, serial numbers, bar codes, 2D codes, graphics and logos easily with the Genius Plus software.  Easily adjust the laser’s velocity, frequency, power, and pulse width parameters to achieve quality marks in the required cycle time.

Built for Integration into Automated Production Lines

  • No separate controller or PC needed
  • No delicate fiber to protect
  • Small footprint for easy integration
  • Safety enclosures available for benchtop marking

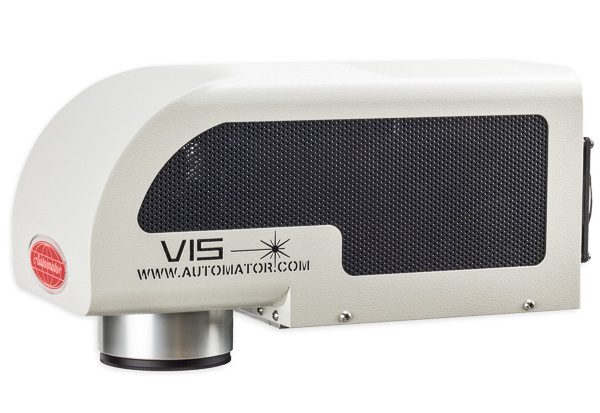

VIS marking laser stand alone integration
VIS marking laser stand alone integration

VIS marking laser stand alone integration

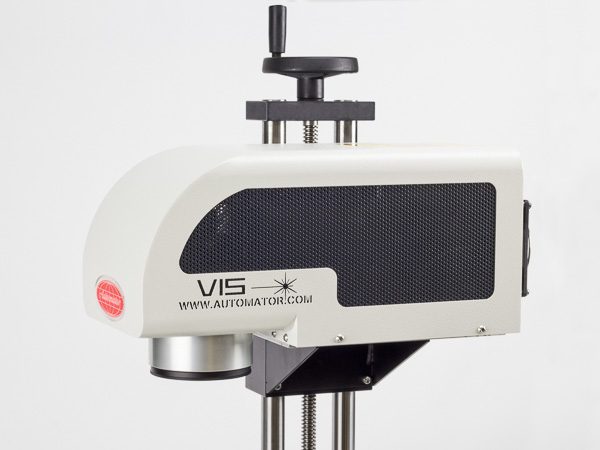

VIS marking laser

VIS marking laser

high contrast laser marked bar code on plastic

laser marked bar code on plastic part

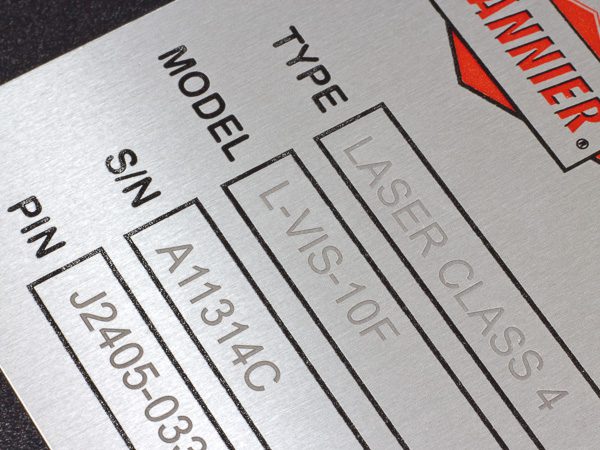

Laser marked metal tags plates

Laser marked metal tags plates

VIS marking laser stand alone integrationVIS marking laserhigh contrast laser marked bar code on plasticLaser marked metal tags plates
Specifications
Laser Type Nd:YVO4 Vanadate (active Q-switch)
Laser Power Options 10W, 20W, 30W, 40W
Lens Options F100 – 70mm x 70mm marking area
F160 – 110mm x 110mm marking area
F254 – 180mm x 180mm marking area
Safety Classification Class 4
Dimensions 173mm W x 360mm D x 167mm H (6.8″ x 14.2″ x 6.6″)
Weight 11 Kg (24.3 lbs)
Portable Configuration: 19.5 Kg (43 lbs)
Power Supply 24VDC, 50 Hz or 60 Hz
Configuration Basic: laser will mark with a PC connected
Stand-alone: system marks without a PC
Accepted Graphics File Types DXF, JPG, BMP and GIF
Video
Accessories
VIS laser accessories

412.323.4900

Talk to a product specialist about your marking project.

Contact Sales

Related Products

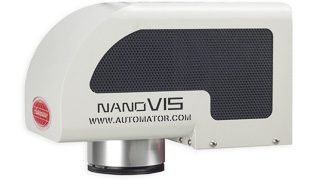

nanoVIS Marking Laser
