3D Laser Marking

Laserax LXQ-3D laser marking systems make it possible to mark on a variety of challenging part geometries including curved, angled, and multi-level surfaces. LXQ-3D lasers are more flexible than LXQ-2D lasers in the sense that the parts being marked don’t have to be positioned as precisely. Parts can be positioned anywhere within the 140 mm / 5.5″ deep focal range of the laser. When the targeted area for marking is curved or inclined, or when the position of the parts change from one to next, with respect to the laser aperture, LXQ-3D automatically adjusts the marking job to accommodate the part geometry.

High Power for Fast Marking

LXQ-3D fiber lasers pack up to 200 Watts, making them the fastest fiber marking lasers on the market.  These powerful lasers make deep marks on metals and mark moving materials with high speed on-the-fly marking capabilities.

Built for Harsh Environments

The specially-engineered design of the LXQ lasers enables the marking head to operate in industrial environments involving vibration, dust, and high temperatures.  This allows laser marking to be an integrated part of many metal production processes for the first time.

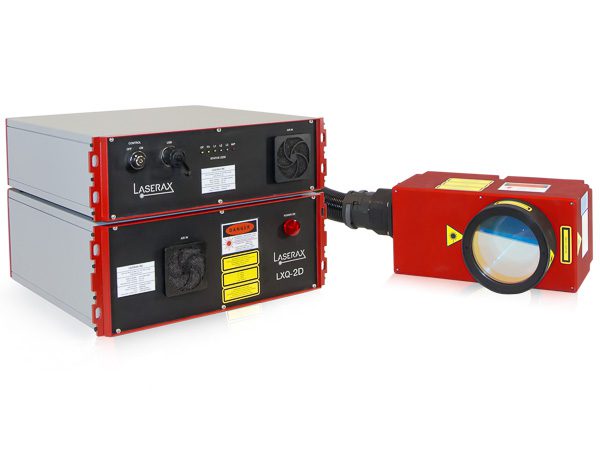

Laserax LXQ-2D industrial fiber laser marking system
Laserax LXQ-2D industrial fiber laser marking system

Laserax LXQ-2D industrial fiber laser marking system

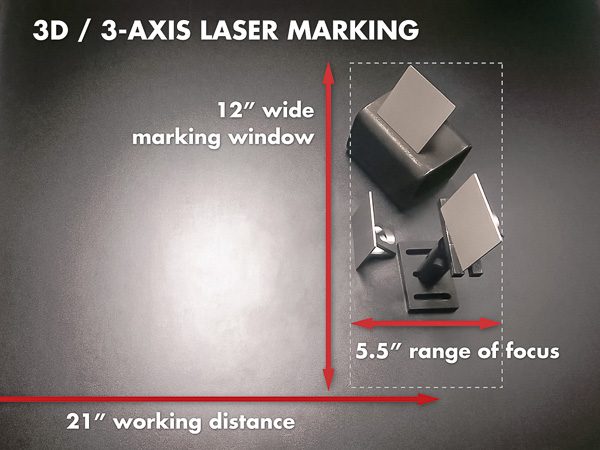

3D / 3-axis laser marking

3D / 3-axis laser marking

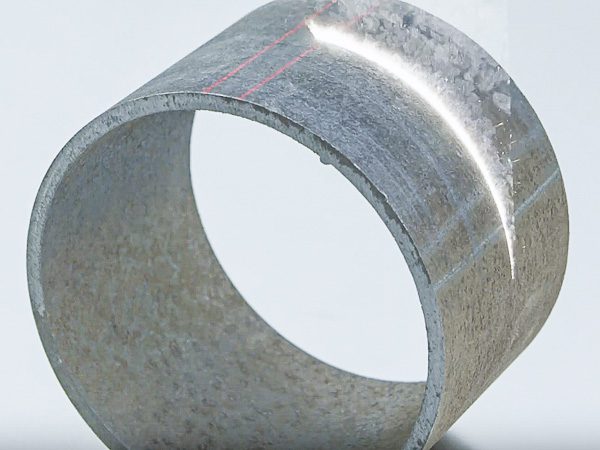

3D laser marking on round parts

3D laser marking on round, angled, and uneven surfaces

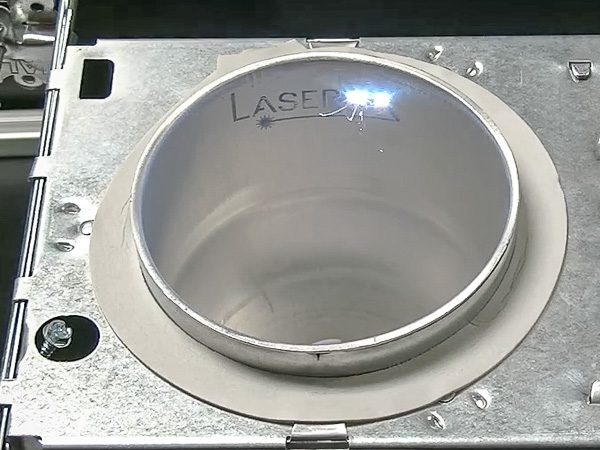

3D laser anneal marking on curved aluminum part

3D laser anneal marking on curved aluminum part

Laserax LXQ-2D industrial fiber laser marking system3D / 3-axis laser marking3D laser marking on round parts3D laser anneal marking on curved aluminum part
Video
Specifications
Wavelength 1,064 nm
Laser Power Options 20W, 30W, 50W, 100W, 200W
Safety Classification Class 4
Protection Class IP65 to IP67
Spot Size ~ 50 µm to 100 µm, depending on configuration
Communication Ethernet, RS-232, USB, digital input/output, encoder signal
Focal Distance 18.1″ to 23.6″; factory set to 21.5″
460 mm to 600 mm; factory set to 547 mm
Marking Window 10.2″ x 10.2″ to 12.8″ x 12.8″ (factory set to 11.8″ x 11.8″)
260 mm2 to 324 mm2 (factory set to 300 mm2)
Mark on the Fly (MOTF) Yes
Stand-alone Operation Yes
Characters per second Depends on application
Options

LXQ lasers can be supplied with a variety of automated safety enclosures for use as stand-alone workstations or inline marking cells. Control panels and enclosures for the laser source, controller, and optional cooling systems allows easy installation in all types of work environments.

Laserax LXQ laser enclosures and system options
