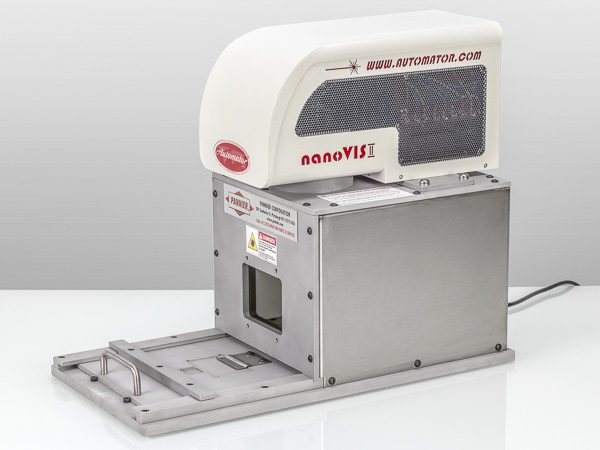

This desktop Class 1 enclosure is a dedicated system for direct laser marking on tags, plates, and labels. It can be used with a Vanadate or fiber laser for optimal mark quality on your material. High-speed galvo laser marking provides excellent quality vector marks in just seconds.

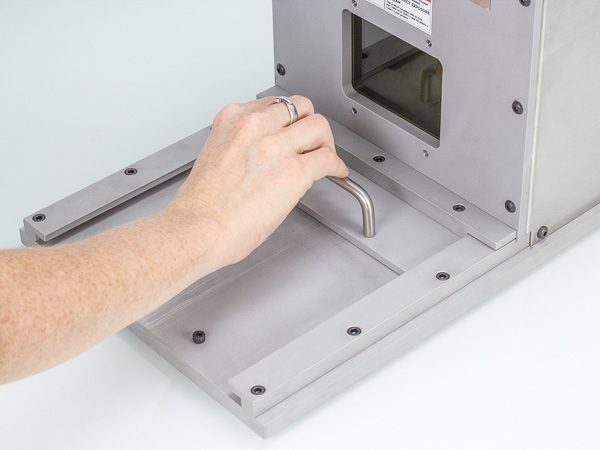

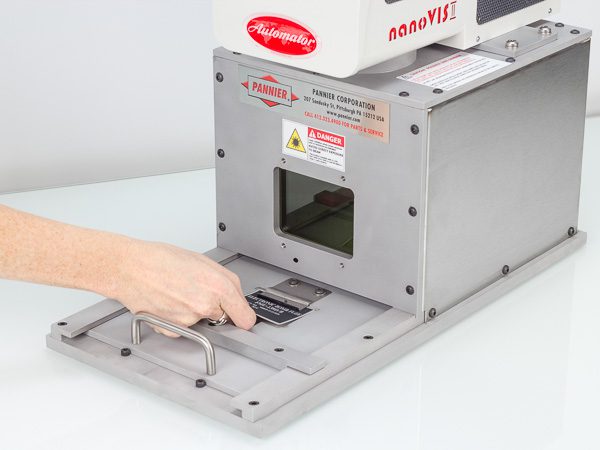

A slide-out drawer with a nesting plate holds a single tag in place during marking, ensuring precise placement. The operator places a tag in the fixture and slides the drawer closed. A safety interlock system prevents the laser from firing if the drawer is not closed completely. The marking process can be viewed through a laser-safe window in the enclosure.
The included EuGENIUS software is very versatile and easy to use. Program marking jobs in mere minutes.
- mark text, graphic shapes, bar codes, and 2D codes
- import and mark vector and raster images
- use automatic text fields such as date codes, shift codes, and serial numbers
- mark any TrueType font (TTF) loaded on your PC
Data can be automatically entered in dynamic fields using an attached bar code scanner or a host computer.
Easy Program Editing
Use the included EuGENIUS software to lay out marking programs for all your items. Easily add text, bar codes, graphics, and logos.
Foolproof Positioning
Use the Preview and Dry Run functions to see exactly where the laser will mark on your tag. Simply click and drag fields to reposition them.
Security
Lock individual fields to prevent unwanted changes. Set an optional supervisor password to prevent operators from modifying programs.
| Marking Area | 110 x 110 mm | 4.3″ x 4.3″ (F160 Lens) |
|---|---|
| Power Supply | 100V / 240V 24VDC |
| Communications | I/O, Ethernet TCP/IP, RS-232 Serial |
| Graphics File Types Accepted | DXF, JPG, BMP and GIF formats |
| Code Symbologies | Code 39, Code 93, Code128, Interleaved 2/5, EAN/UPC, PDF417, Data Matrix, QR |
