The UBI Basic is a powerful marking system for permanent printing on a variety of parts and ID tags/plates. The UBI uses a unique a-Wave fiber laser that delivers the marking capability of a laser many times more powerful. The beam is galvo-driven for super fast, high resolution marks on:

  • metal and plastic parts
  • equipment serial plates
  • asset tracking tags

Simple & Safe

The laser resides in a Class 1 enclosure with laser-safe windows. The door’s magnetic interlock system ensures it can’t be opened during operation. Use the buttons on the control panel to adjust the height of the 7.9″ x 7.9″ part holding base to accommodate different size parts. Internal LED lighting can be turned on to illuminate the work area.

EuGenius Software

Creating marking formats is easy with the included EuGenius software. Connect your PC to the UBI laser and set up a marking layout in minutes. Add text, bar codes, and graphics, then click and drag elements to resize and reposition them. Variable text such as serial numbers and date codes can be set to automatically update or data can be sent from a spreadsheet or other source. Fields can be locked to prevent accidental changes.

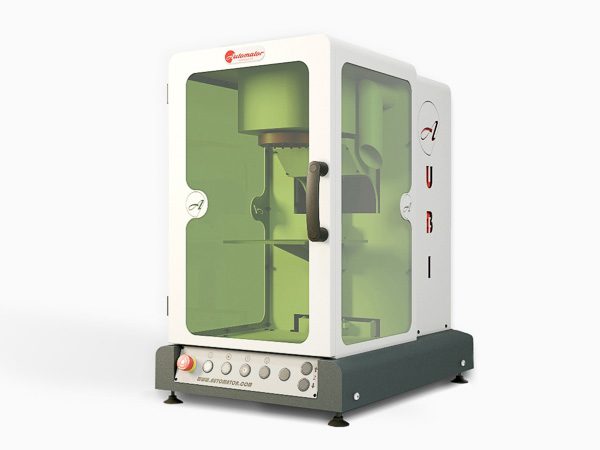

UBI Basic Laser Marking System
UBI Basic Laser Marking System

UBI Basic Laser Marking System

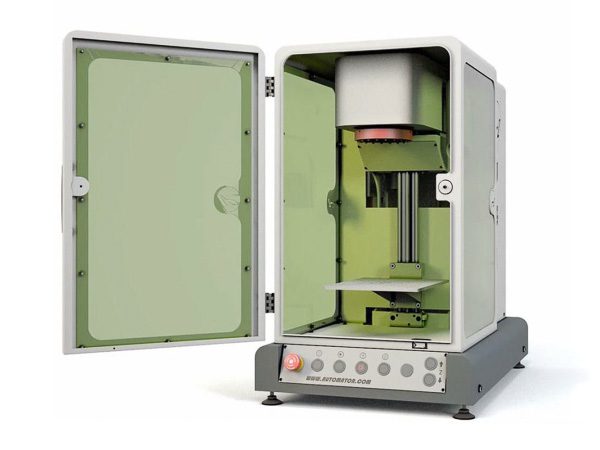

UBI Class 1 Safety Enclosure

UBI Class I enclosure with laser-safe windows and auto locks

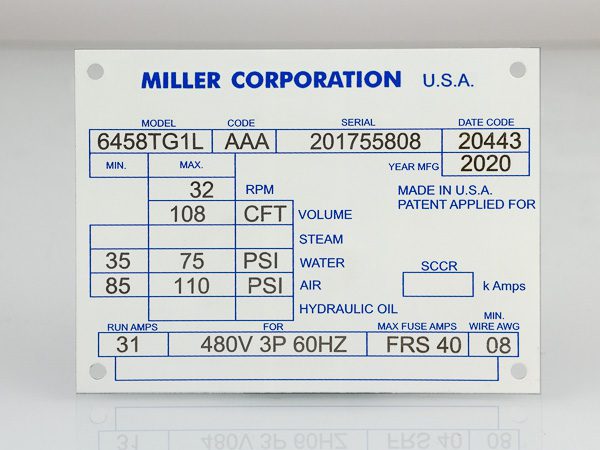

laser printing metal plates

laser printing metal plates

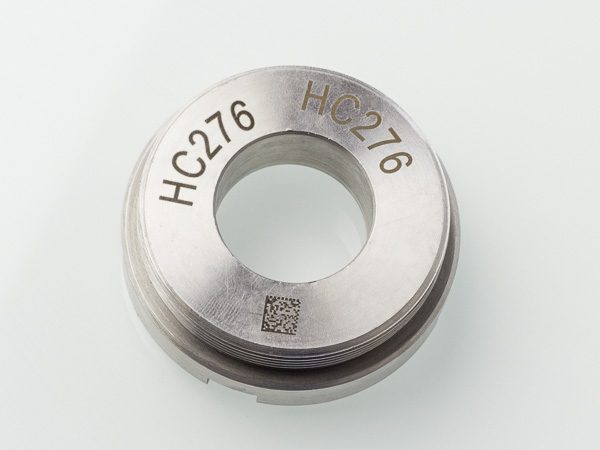

laser marking metal parts

laser marking metal parts

laser marking asset tags

asset tracking tags

brass valve and pipe tag marking

brass valve and pipe tag marking

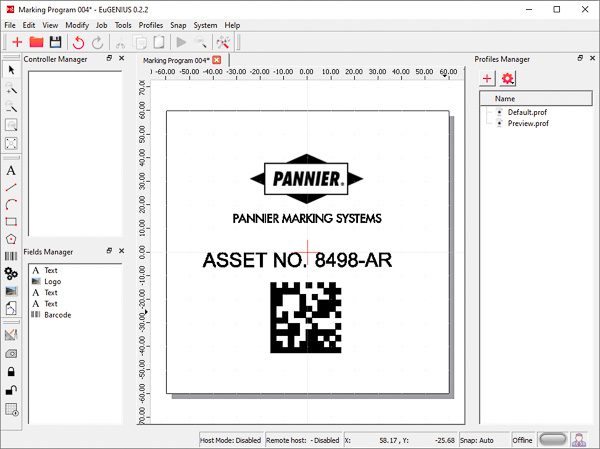

euGenius Software

euGenius Software

UBI Basic Laser Marking SystemUBI Class 1 Safety Enclosurelaser printing metal plateslaser marking metal partslaser marking asset tagsbrass valve and pipe tag markingeuGenius Software
Video
Components

The UBI Basic Laser Marking System includes:

  • 5 watt a-Wave® fiber laser
  • Class 1 safety enclosure
  • Manual door with safety interlock
  • 7.9″ x 7.9″ motorized base with part/tag holding fixture
  • EuGenius software (PC required, not included)
  • Choice of lens:
LENS F163 F254
Maximum Marking Area [X x Y] 4.3″ x 4.3″  |  110 x 110 mm 6.1″ x 6.1″  |  155 x 155 mm
Focal Distance [Z]
(distance from lens to part)
7.5″  |  190 mm 11.7″  |  298 mm

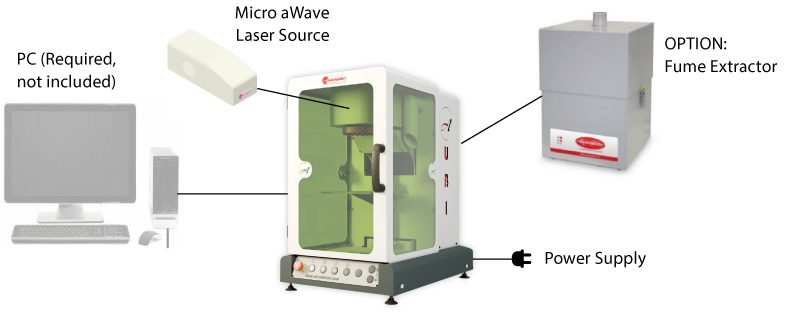

UBI Laser Marking System Components
Specifications
Laser Type Ytterbium a-Wave® with auto regulation, air-cooled
Laser Power 5 W
MTBF (working hours) 140,000
Dimensions W x D x H 17.3″ x 26.4″ x 27.8″  |  440 x 670 x 705 mm
Weight 92.5 lbs  |  42 Kg
Operating Conditions 32° to 100°F  |  15° to 39°C  |  30% to 85% humidity
Power Supply 100V / 240V 24VDC
Graphics File Types Import and mark DXF, JPG, BMP and GIF files
Fonts Any TrueType font (TTF)
Code Symbologies Code 39, Code 93, Code128, Interleaved 2/5, EAN/UPC, PDF417, Data Matrix, QR
Part Holding Base 7.9″ x 7.9″  |  200 x 200 mm  |  motorized height adjustment
Maximum Part Weight 11 lbs  |  5 Kg
Options

Do more with these add-ons:

  • Dual-beam focus finder shows when the part is set at the correct focal distance
  • Metal part/tag detector prevents the laser from firing if a metal part or tag is not detected in the marking position
  • Mini rotary fixture for marking the circumference of small round parts
  • Fume extractor connects to the built-in exhaust port for air extraction and filtration

412.323.4900

Talk to a product specialist about your marking project.

Ask Us a Question

Related Products

PLACA Laser Tag Marker

PLACA Laser Tag Marker

The PLACA laser enclosure is a dedicated marking system for engraving single tags and plates.

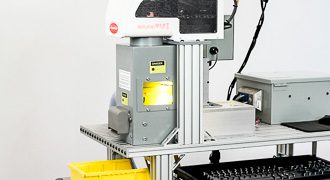

Automatic Laser Plate Marker
