Pannier produces a wide range of rubber printing dies for use in our flexographic printers and ink coders for printing industrial products such as pipe, extrusions, steel strip, rubber products, building materials, and textiles. Manufactured to your specifications, dies are precision made for high quality printing of dates codes, industry specifications, and other product information.

  • Available as individual characters, multi-character segments, or complete dies
  • Use for direct flexographic or offset printing applications
  • Rubber materials include natural, EPDM, Buna-N, and silicone in different durometers for a variety of specialty printing applications

Pannier offers professional artwork services to ensure the best quality reproduction of your logos and graphics.

The downloadable order forms below may be used for easy order processing.

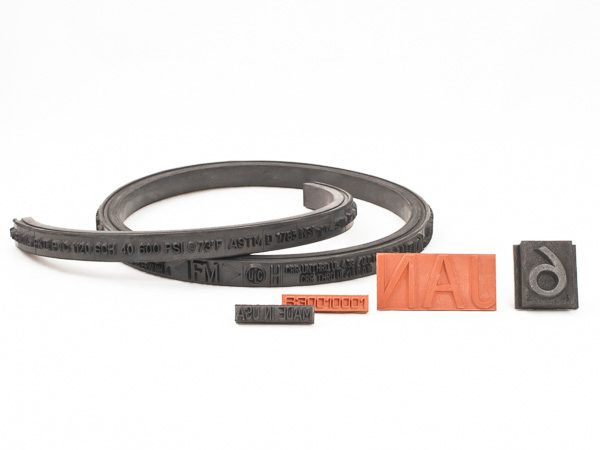

rubber printing dies
rubber printing dies

rubber printing dies

rubber printing dies

rubber printing dies

die wheel with RIBType dies

die wheel with RIBType dies

pre-curved ring dies

pre-curved ring dies

pre-curved die wheel with dies

pre-curved die wheel with dies

Pann-Off dies and die wheel

Pann-Off dies and die wheel

rubber printing diesrubber printing diesdie wheel with RIBType diespre-curved ring diespre-curved die wheel with diesPann-Off dies and die wheel
Die Types

E-Z Set Printing Dies

E-Z Set rubber dies feature a single rib on the back that is held in place on a print die wheel with a dovetail slot. Dies are easily pressed in place and removed for quick die changes. Character sizes range from 1/16″ to 1-1/2″, and dies can be made in single-line or multi-line configurations. Maximum total die width is 1-1/2″, and maximum length is 23″ (for use on a 24″ diameter print die wheel).

Pann-Off rubber dies

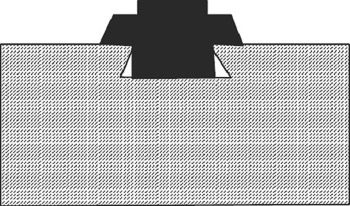

E-Z Set die mounting

Offset Printing Dies

Pannier offers two types of dies specially designed for use in offset pipe & tube printersPann-Off dies are similar to E-Z Set dies, yet the characters are reversed for use in an offset printer. Pre-curved dies are formed in a curve to fit precisely in a 12″ diameter or 24″ diameter pre-curved die wheel.

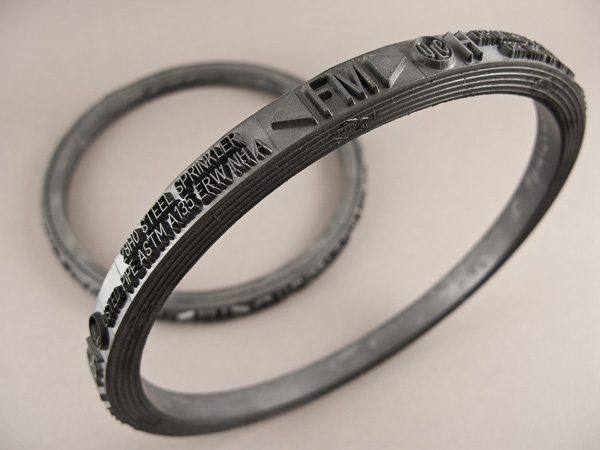

pre-curved ring dies

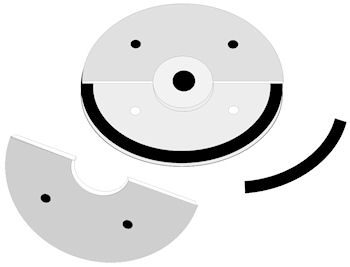

pre-curved die wheel with dies

RIBType® Printing Dies

RIBType® dies feature multiple ribs on the back which interlock with a RIBType® base print wheel. This allows for characters or segments to be placed anywhere on the print die wheel for ultimate printing flexibility. Dies are available in natural rubber, Buna-N, PVC, or silicone materials.

die wheel with RIBType dies

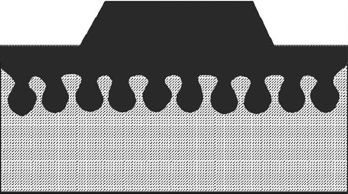

RIBType die mounting

Convex Flange Rubber Type

These extra-hard type sorts are made specifically for marking warm extruded rubber. Fitted into a special die wheel, they are held securely in place to ensure that they won’t pull out of the wheel. Available in 3/4″ open face or solid character styles, or 1″ solid characters.

rotary printer for rubber marking

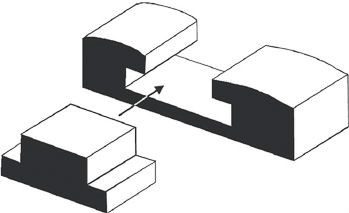

convex flange die mounting

412.323.4900

Talk to a product specialist about your marking project.

Contact Sales

Related Products

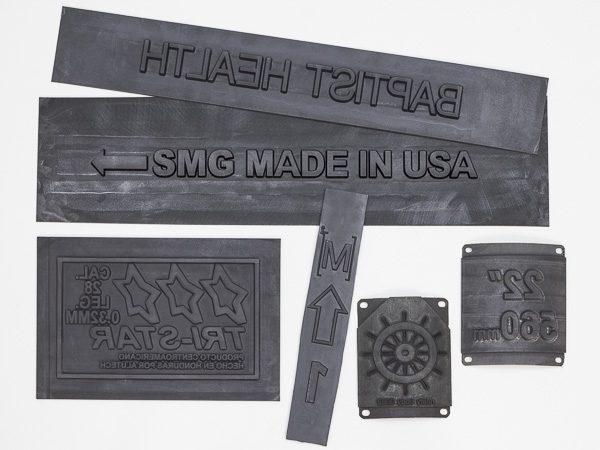

Industrial Printing Plates
