The Automator nanoVIS laser is a versatile and economical laser marking system for industrial applications. With its aWave self-adjusting frequency, the nanoVIS makes marks comparable to a 10 Watt or 20 Watt fiber laser at a much lower cost.

Built-in Versatility

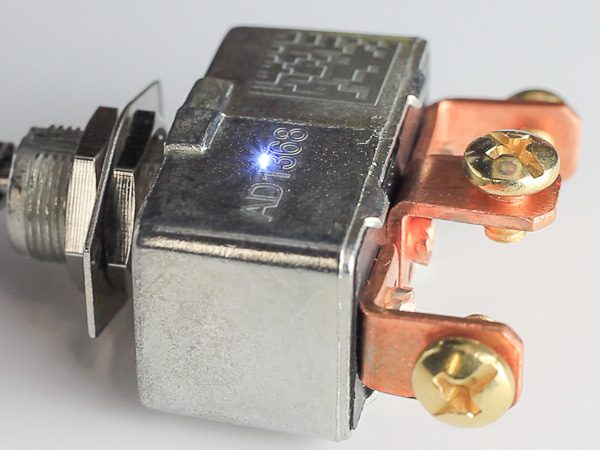

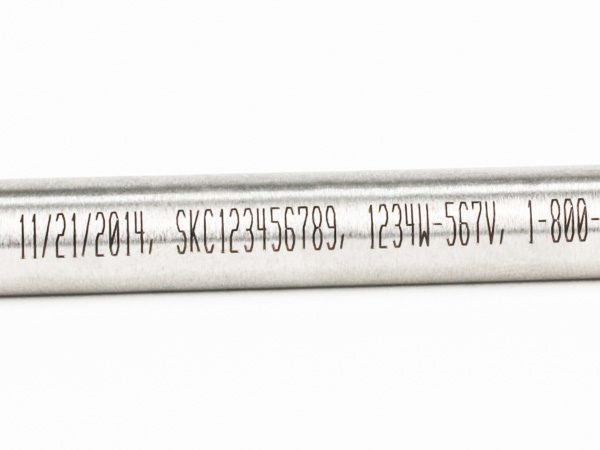

Unlike fiber lasers, all components are combined in a single compact unit for easy integration into production environments or benchtop marking workstations.  Mark a variety of materials including metals, plastics, wood, rubber, coated surfaces, and more.

Modes of Operation

Basic – PC required.  Remote Interface Protocol is used to upload marking jobs, update fields inside a job, and control the system status.

Standard – Once the laser is programmed, the system can operate without a PC.  API protocol is used to communicate with the laser.

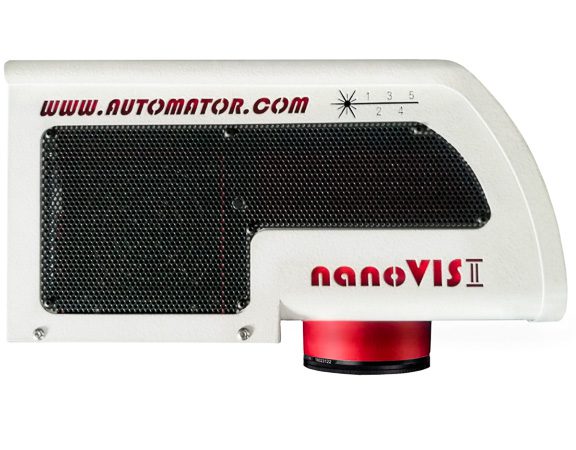

Automator nanoVIS compact industrial marking laser
Automator nanoVIS compact industrial marking laser

Automator nanoVIS compact industrial marking laser

Automator nanoVIS III laser marking head

Automator nanoVIS III laser marking head

nanoVIS III laser marking head ports

nanoVIS III laser marking head ports

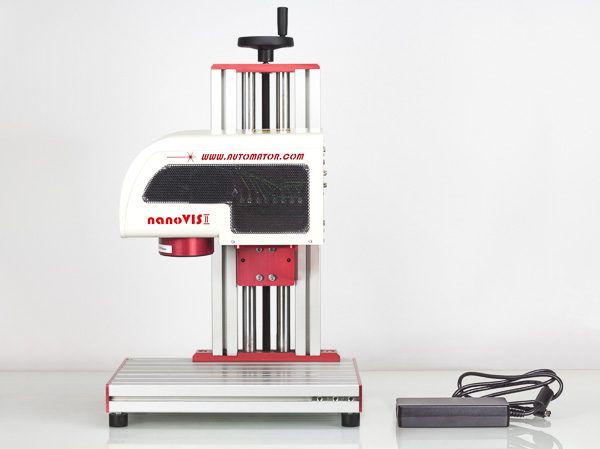

nanoVIS II Class 4 Laser

nanoVIS II Class 4 Laser

Automator nanoVIS compact industrial marking laserAutomator nanoVIS III laser marking headnanoVIS III laser marking head portsnanoVIS II Class 4 Laser
Programming

Easy Program Editing

Use the included EuGENIUS software to lay out marking programs for all your items. Easily add text, bar codes, graphics, and logos.

Foolproof Positioning

Use the Preview and Dry Run functions to see exactly where the laser will mark on your part. Simply click and drag fields to reposition them.

Security

Lock individual fields to prevent unwanted changes. Set an optional supervisor password to prevent operators from modifying programs.

EuGENIUS laser marking software - metal asset tag program
Lenses

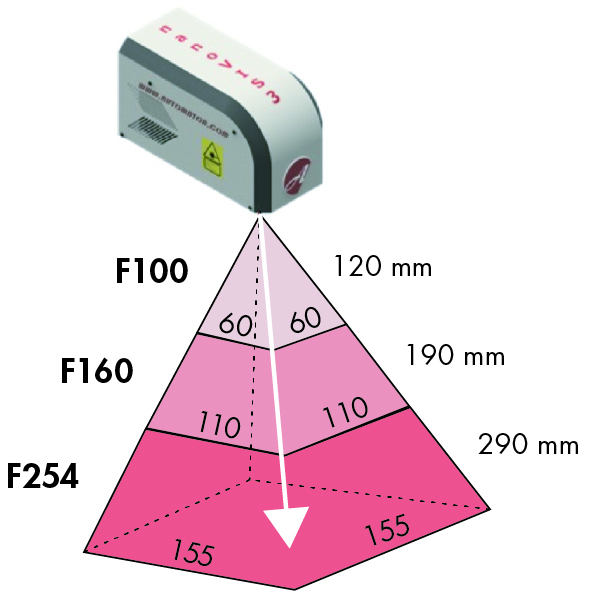

Choose a lens that will accommodate the maximum size part and maximum size mark you wish to make.

Lens Maximum Marking Area Focal Distance *
F100 Lens 2.36″ x 2.36″  |  60 x 60 mm ** 4.7″  |  120 mm
F160 Lens 4.33″ x 4.33″  |  110 x 110 mm ** 7.5″  |  190 mm
F254 Lens 6.10″ x 6.10″  |  155 x 155 mm ** 11.4″  |  290 mm

* Required distance from the lens to the part being marked.

** +/- 2% tolerance

nanoVIS laser lens options
Specifications

Components

  • Laser unit consisting of laser source, galvanometric head, safety shutter, focusing lens, electronics, and cooling fan
  • External 100/240V power supply (24VDC)
  • EuGENIUS software
  • PC (required, not included)



Technical Data

Dimensions  L x W x H 13.8″ x 6.6″ x 8.3″  |  350 x 168 x 210 mm
Weight 21.4 lbs  |  9.7 kg
Laser Source Type YAG – aWave
Wavelength 1060 nm
Power Range (Watts) variable
Polarization Linear (100:1)
Optical Isolator No
External Power Supply 100/240 VAC; 24 VDC
Beam Quality (M2) TEM00
Pulse Duration @20kHz <130 ns
Power Consumption (68°F/20°C) 160 Watts
Working Temperature 59° – 95°F  |  15° – 35° C
Storage Temperature 32° – 140°F  |  0° – 60° C
Working Humidity 10% – 85%, non-condensing
Cooling System Air
Directive 2011/65/EC – RoHS Respecting
Safety Classification Class 4
MTBF Est. > 120,000 hours
Estimated Life 20 years
