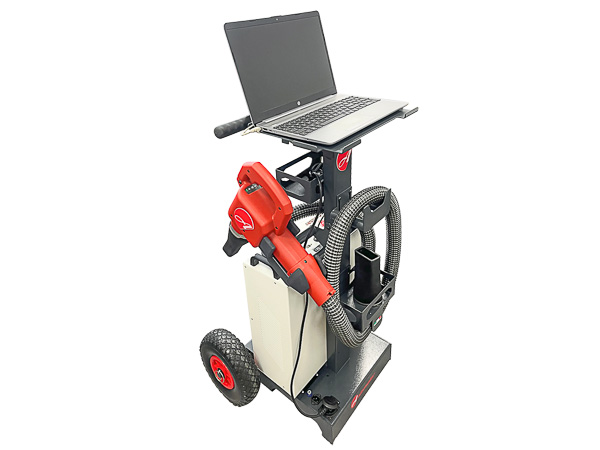

The Colibri is a fast and powerful portable laser marking system. The innovative cabinet and marking head are optimized to work in industrial work environments where vibration and dust are common. The laser beam is generated in the cabinet and carried to the portable marking head by a 7-foot long fiber cable.
Built for Safe Operation

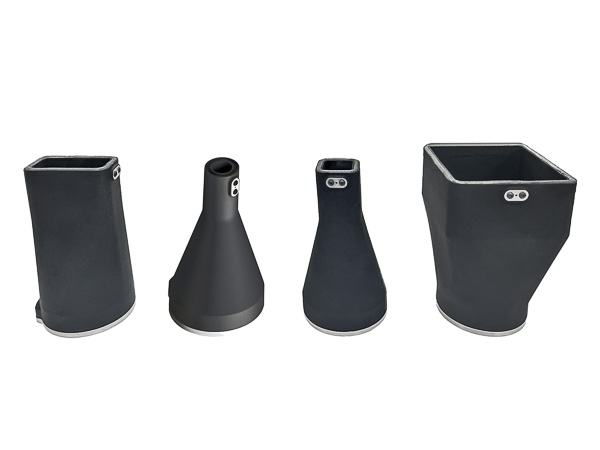

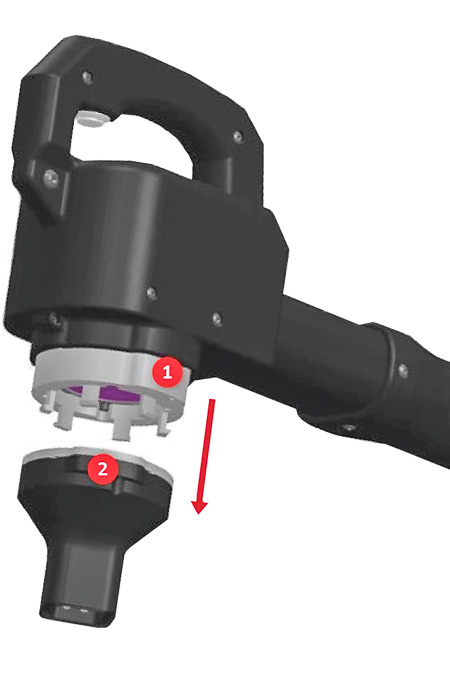

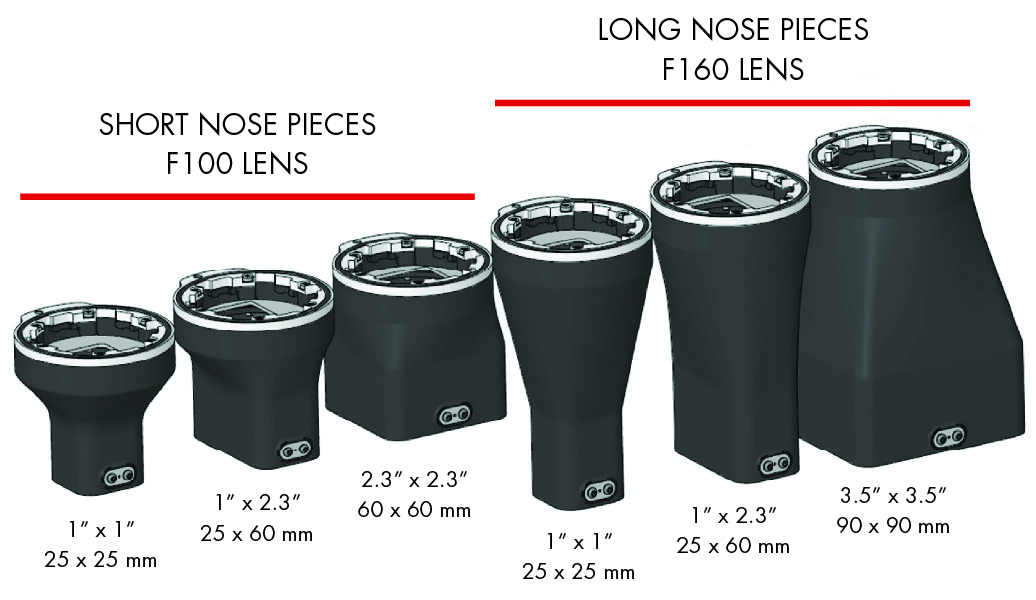

The Colibri is a Class 1 laser system, meaning that the beam is completely enclosed for operator safety. Interchangeable nose pieces enclose the laser beam during operation. Standard nose pieces are available for different size markings, and custom pieces can be made for your particular application.
The system uses air pressure to ensure that the nose piece is properly sealed against the workpiece. If the seal breaks, the laser shutter automatically closes to prevent exposure to laser radiation.
Easy Program Editing
Use the included EuGENIUS software to lay out marking programs for all your items. Easily add text, bar codes, graphics, and logos.
Foolproof Positioning
Use the Preview and Dry Run functions to see exactly where the laser will mark on your part. Simply click and drag fields to reposition them.
Security
Lock individual fields to prevent unwanted changes. Set an optional supervisor password to prevent operators from modifying programs.
Choose a lens that will accommodate the maximum size part and maximum size mark you wish to make.
| Lens | Maximum Marking Area | Focal Distance * |
|---|---|---|
| F100 Lens | 2.36″ x 2.36″ | 60 x 60 mm * | 4.7″ | 120 mm |
| F160 Lens | 4.33″ x 4.33″ | 110 x 110 mm * | 7.5″ | 190 mm |
| F254 Lens | 6.10″ x 6.10″ | 155 x 155 mm * | 11.4″ | 290 mm |
| F330 Lens | 7.87″ x 7.87″ | 200 x 200 mm * | 15.0″ | 380 mm |
| F430 Lens | 11.8″ x 11.8″ | 300 x 300 mm * | 18.1″ | 460 mm |
* Required distance from the lens to the part being marked.
** +/- 2% tolerance
Basic – PC required. Remote Interface Protocol is used to upload marking jobs, update fields inside a job, and control the system status.
Standard – Once the laser is programmed, the system can operate without a PC. API protocol is used to communicate with the laser.
| Power | 20–30 Watts |
| Laser Source | NB:Yb Fiber |
| Safety Classification | Class 1 |
| Wavelength | 1064 nm |
| Electrical Connection | 110-230 VAC; 50-60 Hz |
| Air Supply | 30 – 85 PSI | 2 – 6 bar, clean and dry |
| Maximum Power Consumption | 500 Watts |
| Cooling System | Air |
| Operating Temperature | 59° – 95°F | 15° – 35° C |
| Operating Humidity | 10% – 85% non-condensing |
| Weight, Head | 6.5 lbs | 3 kg |
| Weight, Cabinet | 45 lbs | 20.5 kg |
| Dimensions, Cabinet L x W x H | 19.2″ x 16.1″ x 7.0″ | 487 x 410 x 178 mm |
| Fibre Cable Length | 7.2 ft | 2.2 m |
