FYBRA fiber lasers offer fast, deep engraving for heavy duty marking and difficult-to-mark materials. The FYBRA’s unique combination of high peak power and exceptional beam quality produces a tight beam profile perfect for a wide variety of marking applications, from deep engraving to micro etching. The proprietary A-wave™ technology allows for a considerable increase of the power without compromising the size of the laser spot. This results in excellent mark quality at higher powers and a better efficiency of the system.
Built for Automated Production Lines

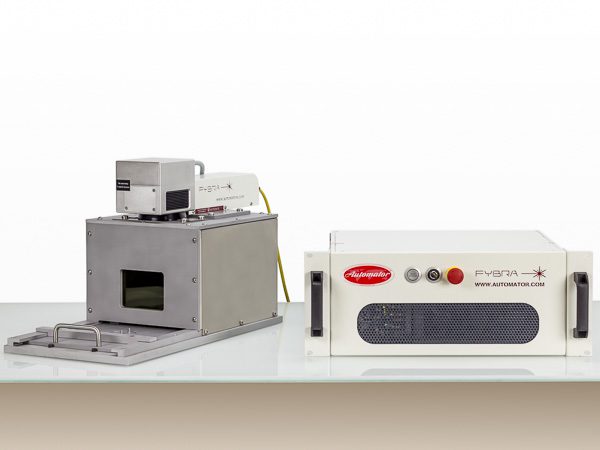

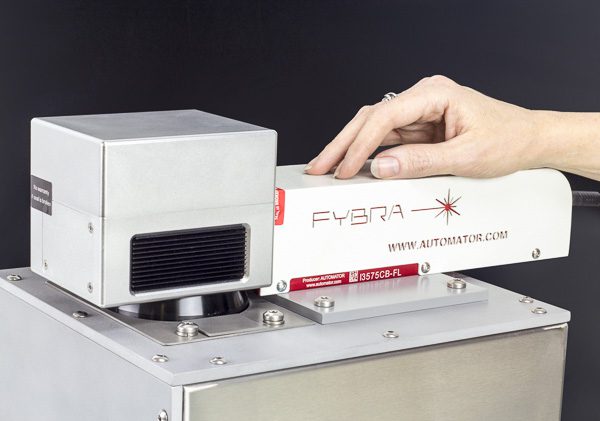

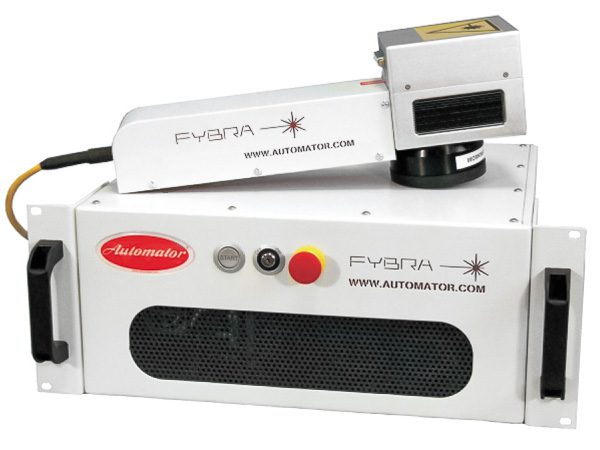

The FYBRA’s innovative design is optimized to work in heavy duty work environments. The control box houses the laser source and electronics in separate cases to protect the source from dust and disturbances. The beam generated from the laser source travels via a flexible fiber cable to the compact marking head that can be mounted in any position on a production line.
Modes of Operation
Basic – PC required. Remote Interface Protocol is used to upload marking jobs, update fields inside a job, and control the system status.
Standard – Once the laser is programmed, the system can operate without a PC. API protocol is used to communicate with the laser.
Easy Program Editing
Use the included EuGENIUS software to lay out marking programs for all your items. Easily add text, bar codes, graphics, and logos.
Foolproof Positioning
Use the Preview and Dry Run functions to see exactly where the laser will mark on your part. Simply click and drag fields to reposition them.
Security
Lock individual fields to prevent unwanted changes. Set an optional supervisor password to prevent operators from modifying programs.
Choose a lens that will accommodate the maximum size part and maximum size mark you wish to make.
| Lens | Maximum Marking Area | Focal Distance * |
|---|---|---|
| F100 Lens | 2.36″ x 2.36″ | 60 x 60 mm * | 4.7″ | 120 mm |
| F160 Lens | 4.33″ x 4.33″ | 110 x 110 mm * | 7.5″ | 190 mm |
| F254 Lens | 6.10″ x 6.10″ | 155 x 155 mm * | 11.4″ | 290 mm |
| F330 Lens | 7.87″ x 7.87″ | 200 x 200 mm * | 15.0″ | 380 mm |
| F430 Lens | 11.8″ x 11.8″ | 300 x 300 mm * | 18.1″ | 460 mm |
* Required distance from the lens to the part being marked.
** +/- 2% tolerance
| Dimensions, Head (L x W x H) | 16.7″ x 5.6″ x 5.4″ | 424 x 143 x 139 mm (not including lens or fiber) |
| Dimensions, Cabinet (L x W x H) | 18.3″ x 19.6″ x 5.6″ | 465 x 497 x 142 (not including fiber) |
| Weight, Head | 13.2 lbs | 6 kg |
| Weight, Cabinet | 51.8 lbs | 23.5 kg |
| Laser Source Type | Active Fiber Laser |
| Wavelength | 1050 – 1090 nm |
| Fiber Length | 9.8 ft | 8 m |
| Power Range | 20 Watt or 50 Watt |
| Polarization | Random |
| Optical Isolator | Yes |
| External Power Supply | 100/240V 50/60Hz |
| Power Consumption (at 68°F/20°C) | 500 Watts |
| Working Temperature | 32° – 104°F | 0° – 40° C |
| Working Humidity | 10% – 85%, non-condensing |
| Cooling System | Air |
| MTBF | Est. > 120,000 hours |
| IP Rating, Head | IP60 |
| IP Rating, Cabinet | IP30 |
