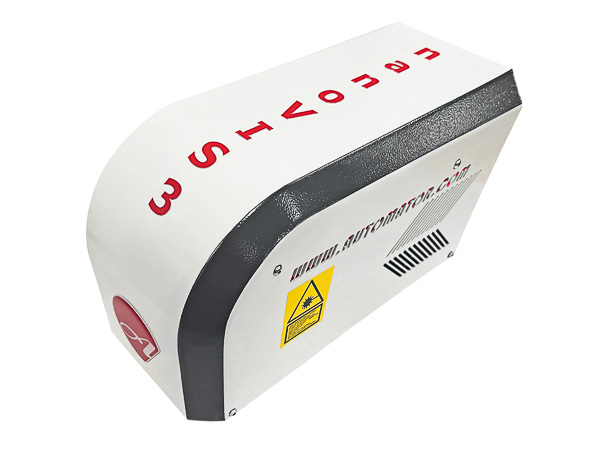

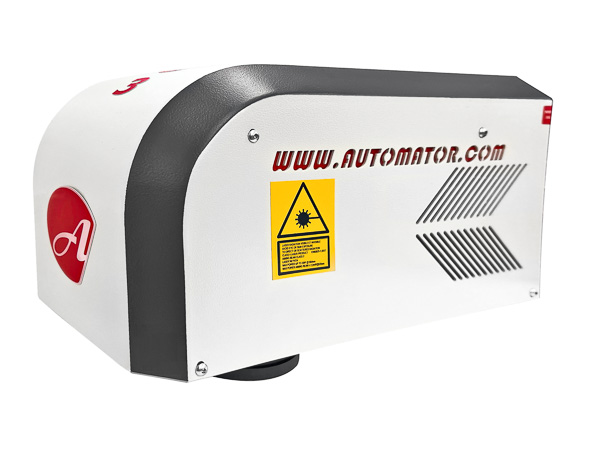

The Automator nanoVIS laser is a versatile and economical laser marking system for industrial applications. With its aWave self-adjusting frequency, the nanoVIS makes marks comparable to a 10 Watt or 20 Watt fiber laser at a much lower cost.
Built-in Versatility
Unlike fiber lasers, all components are combined in a single compact unit for easy integration into production environments or benchtop marking workstations. Mark a variety of materials including metals, plastics, wood, rubber, coated surfaces, and more.
Modes of Operation
Basic – PC required. Remote Interface Protocol is used to upload marking jobs, update fields inside a job, and control the system status.
Standard – Once the laser is programmed, the system can operate without a PC. API protocol is used to communicate with the laser.
Easy Program Editing
Use the included EuGENIUS software to lay out marking programs for all your items. Easily add text, bar codes, graphics, and logos.
Foolproof Positioning
Use the Preview and Dry Run functions to see exactly where the laser will mark on your part. Simply click and drag fields to reposition them.
Security
Lock individual fields to prevent unwanted changes. Set an optional supervisor password to prevent operators from modifying programs.
Choose a lens that will accommodate the maximum size part and maximum size mark you wish to make.
| Lens | Maximum Marking Area | Focal Distance * |
|---|---|---|
| F100 Lens | 2.36″ x 2.36″ | 60 x 60 mm ** | 4.7″ | 120 mm |
| F160 Lens | 4.33″ x 4.33″ | 110 x 110 mm ** | 7.5″ | 190 mm |
| F254 Lens | 6.10″ x 6.10″ | 155 x 155 mm ** | 11.4″ | 290 mm |
* Required distance from the lens to the part being marked.
** +/- 2% tolerance
Components

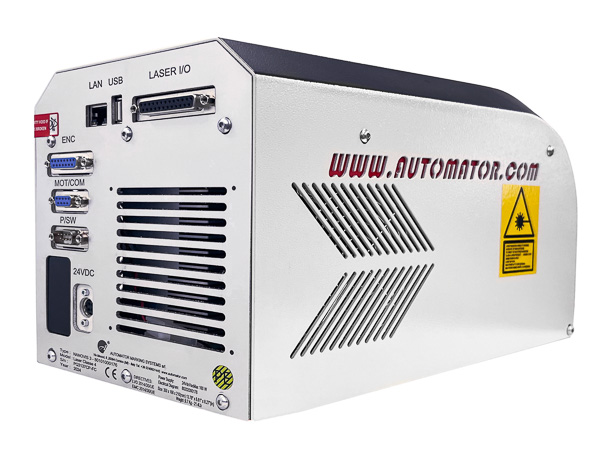

- Laser unit consisting of laser source, galvanometric head, safety shutter, focusing lens, electronics, and cooling fan
- External 100/240V power supply (24VDC)
- EuGENIUS software
- PC (required, not included)
Technical Data
| Dimensions L x W x H | 13.8″ x 6.6″ x 8.3″ | 350 x 168 x 210 mm |
| Weight | 21.4 lbs | 9.7 kg |
| Laser Source Type | YAG – aWave |
| Wavelength | 1060 nm |
| Power Range (Watts) | variable |
| Polarization | Linear (100:1) |
| Optical Isolator | No |
| External Power Supply | 100/240 VAC; 24 VDC |
| Beam Quality (M2) | TEM00 |
| Pulse Duration @20kHz | <130 ns |
| Power Consumption (68°F/20°C) | 160 Watts |
| Working Temperature | 59° – 95°F | 15° – 35° C |
| Storage Temperature | 32° – 140°F | 0° – 60° C |
| Working Humidity | 10% – 85%, non-condensing |
| Cooling System | Air |
| Directive 2011/65/EC – RoHS | Respecting |
| Safety Classification | Class 4 |
| MTBF | Est. > 120,000 hours |
| Estimated Life | 20 years |
