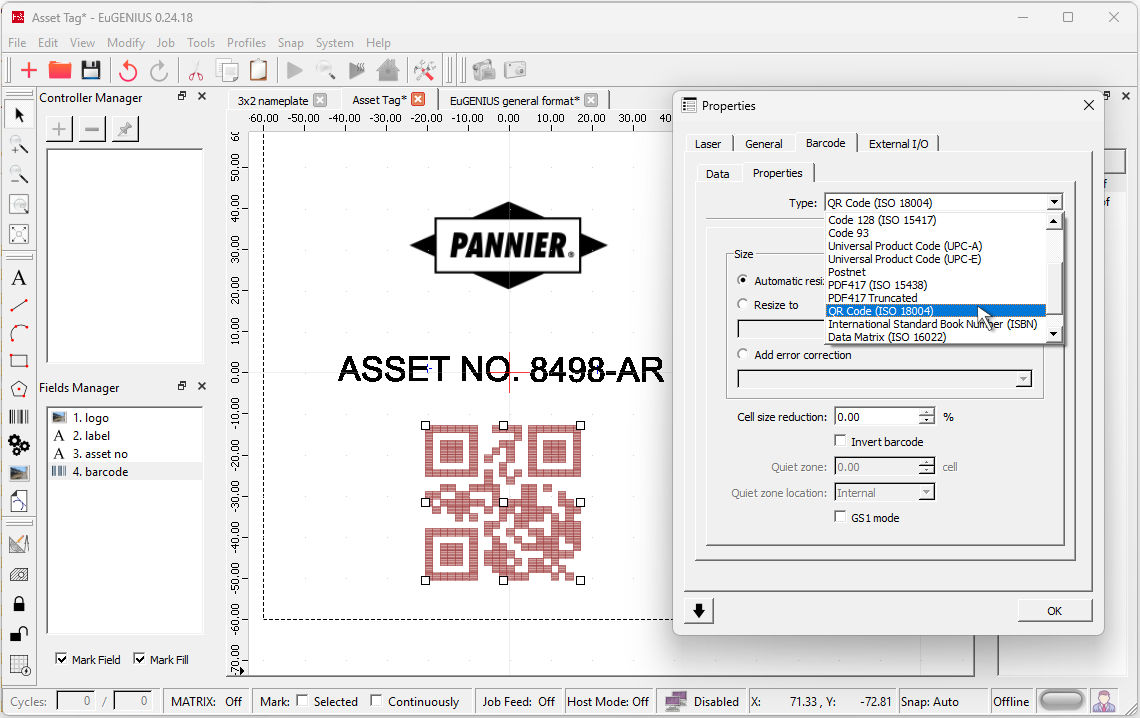

Easy Program Editing
EuGENIUS features a simple and intuitive interface for setting up your laser marking programs. Use the icons on the toolbar to add text, bar codes, and graphics to your programs. Click and drag fields to resize or reposition them. Store hundreds of different programs for all the items you need to mark.
- Mark text using any installed TrueType font (TTF)
- Create time, date, and serial number fields that automatically update
- 18 standard bar code types including Data Matrix and QR codes
- Mark lines, boxes, and imported DXF, JPG, BMP, and GIF files
Foolproof Part Positioning

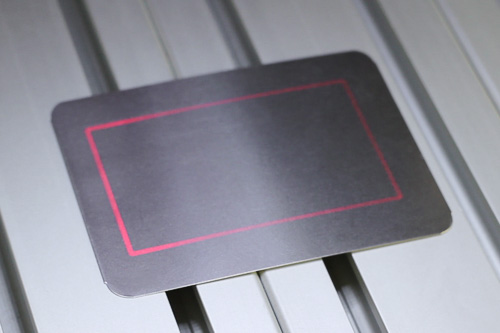

Use the Preview Window and Dry Run functions to see where the laser will mark on your part. A red LED light shows you a preview of your mark so you can be sure the part is positioned correctly before executing the final mark cycle.
Full Control of Mark Quality
EuGENIUS offers a multitude of settings and adjustments to help you achieve the best marks possible on your items.
- Full control of laser power, speed, and fill settings for different surfaces and different types of marks.
- Adjust cell sizes of QR codes and Data Matrix codes for optimum scannability.
- Use dithering and grayscale controls to fine-tune images for marking.
- Save ideal settings for different materials to use in any marking program.

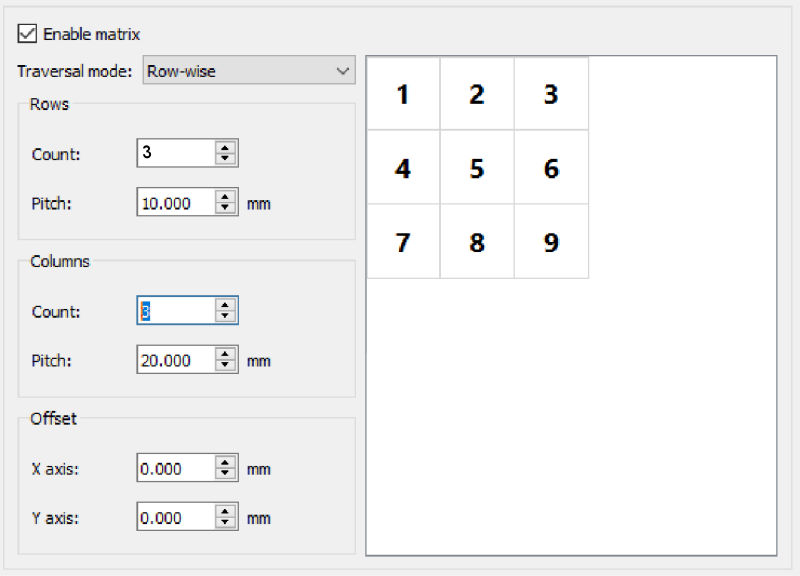

Multi-part Matrix Setup
To mark several parts at once, use the matrix function to automatically repeat the execution of a marking program. Set the number, layout, and order of the pieces to be marked. If dynamic fields are used in your program – such as automatic time stamps or serial numbers – these fields will automatically update with each mark.
Automate Data Entry
Remove manual data entry from your workflow to increase production throughput and eliminate errors. Choose from these direct communication methods.
