Pannier offers the most advanced dot peen marking systems for factory automation environments, making integration of automatic marking fast and easy for machine builders and OEMs.

Easily integrate direct part marking into:

  • Progressive assembly cells, rotary or linear
  • Robotic welding cells
  • Leak detection systems
  • Inspection and measurement systems

AC500 Controller – Fast And Easy Integration

The AC500 controller features simple touchscreen controls, integrated communication capabilities, and a variety of ports for maximum connectivity. The AC500 works with any size MarkFirst marking head as well as other brands of dot peen marking systems for backward compatibility and easy management of multiple systems.

AC500 with Ethernet port

Built-in EtherNet/IP

The AC500’s advanced PLC communications capabilities will save you hours of programming time. Its optional integrated EtherNet/IP port makes it easy to connect to a wide range of PLCs, HMIs, and controllers.

ADP5090 Dot Peen Marking Head
ADP5090 Dot Peen Marking Head

ADP5090 dot peen marking head

Basic AC500 Control Panel

basic AC500 control panel

Custom AC500 Control Panel

custom AC500 control panel

Dot Peen Integrated Into Automated Production Line

dot peen integrated into automated production line

Custom Dot Peen Marking Station

custom dot peen marking station

Automatic Steel Billet Marking

automatic steel billet marking

ADP5090 Dot Peen Marking HeadBasic AC500 Control PanelCustom AC500 Control PanelDot Peen Integrated Into Automated Production LineCustom Dot Peen Marking StationAutomatic Steel Billet Marking
  • Connect to a host or devices via the serial, I/O, Ethernet, and USB ports
  • Optional EtherNet/IP™ port for integration with PLCs
  • Use the USB port for easy loading of marking programs, logos, system settings, firmware upgrades, and more
  • 64 MB internal flash memory safely stores hundreds of marking patterns
  • Built in marking history and statistics files
  • Operator, supervisor, and distributor security levels to prevent unintended changes
  • Use with any size MarkFirst marking head as well as other brands of dot peen markers

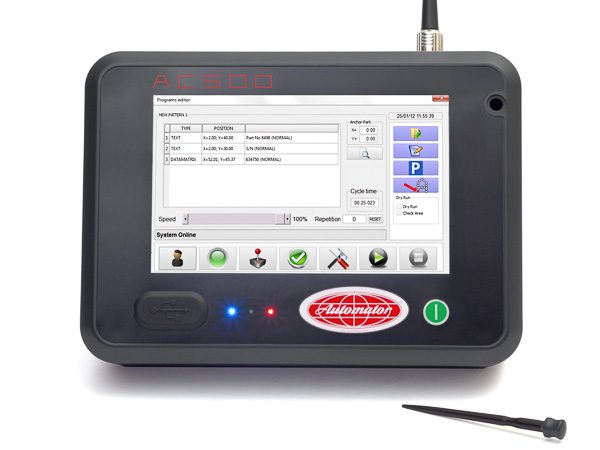

AC500 dot peen touchscreen controller

The AC500 controller and ADP5090 and larger marking heads are rated IP40 for use in industrial manufacturing environments. Mounting the controller vertically increases its rating to IP61.

  • The external power supply meets CE, UL, CSA, and EISA 2007 standards.
  • The power supply must be stabilized and the working environment should not have major electromagnetic fields.
  • Controller-to-head cables are available in various lengths up to 15 meters.

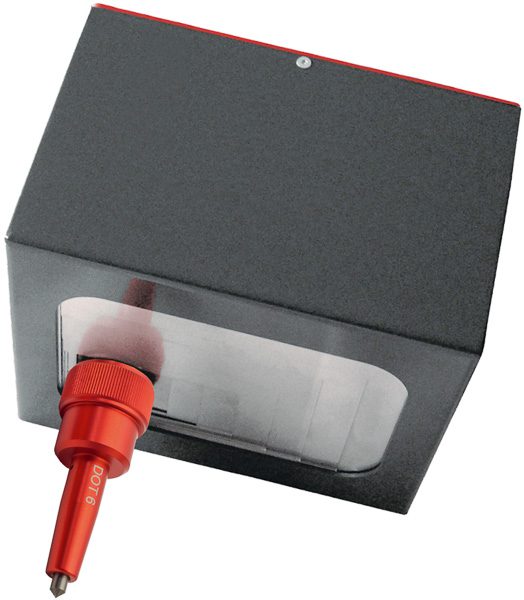

ADP5090 pin marking head

ADP5090 Marking Head

Marking Window
(max. mark area)
50 x 90 mm
2″ x 3.5″
Dimensions
(W x D x H)
180 x 150 x 120 mm
7.1″ x 5.9″ x 4.7″
Weight 4.9 kg / 10.8 lbs
IP Rating IP40
ADP2560 compact dot peen marking head

ADP2560

ADP25120 dot peen marking head

ADP25120

ADP120160 large dot peen marking head

ADP120160

ADP300400 extra large dot peen marking head

ADP300400

Head ADP2560 ADP25120 ADP120160 ADP300400
Mark Area 25 x 60 mm 25 x 120 mm 120 x 160 mm 300 x 400 mm
Dimensions W 139 mm
D 80 mm
H 174.5 mm
W 199 mm
D 80 mm
H 174.5 mm
W 260 mm
D 220 mm
H 123 mm
W 514 mm
D 424 mm
H 148 mm
Weight 2 kg / 4.4 lbs 3.3 kg / 7.3 lbs 7.5 kg / 16.5 lbs 9.5 kg / 21 lbs
IP Rating IP40 IP40



All size marking heads are available as pneumatic units for use with various marking pins or as electric units with a 3mm dot marking pin only.

pneumatic dot peen marking pins

Carbide Marking Pins

  • 3mm dot peen pin
  • 6mm dot peen pin
  • 12mm dot peen pin
  • 18mm dot peen pin
  • 3mm XL dot peen pin
  • 6mm XL dot peen pin
  • 3mm vibropeen pin
  • 4mm vibropeen peen
Impact Marking Presses

Impact Marking Presses

Benchtop and fixed-mount presses available in various tonnages for repetitive part marking.

Heavy Duty Dot Peen Marking

Custom Automated Systems

Custom-built dot peen marking systems are built to meet your automation needs.

VIS Marking Laser

VIS Marking Laser

Compact all-in-one laser for industrial marking applications.
